Manual Shoe Cutting Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-898Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 15 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
Product Description

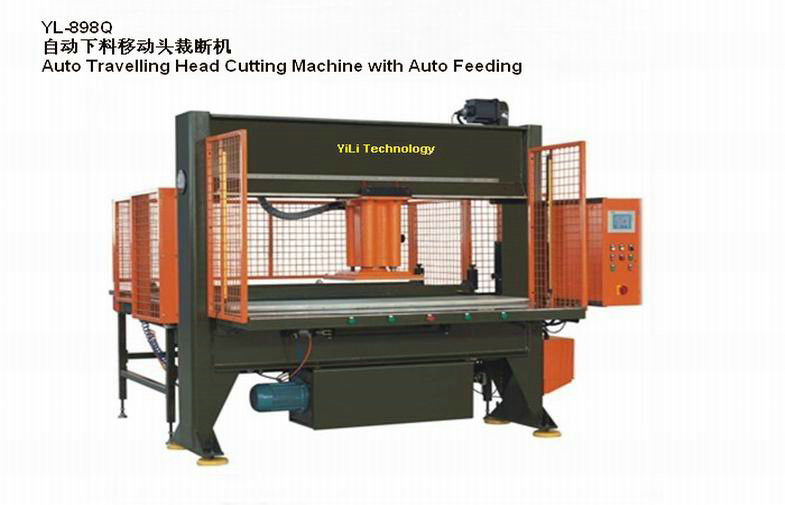

YL-898Q Automatic Feeding Traveling Head Cutting Machine
Quick Detail:
- Product name: Traveling travel head cutting presses machine for shoe, Hydraulic traveling head cutting press
- Brand name: YiLi
- M.C.F.: 25/30tons
- Function: cutting
- Type: Cutting machine
- Machine: Hydraulic cutting machine
- Arm width: 500*500mm
- High Speed.
Manual Automatic Feeding Traveling Head Shoe Cutting Machine , 2.2KW
Description:
YL-898Q Automatic Feeding Traveling Head Cutting Machine has various working modes such as inching, manual and automatic etc. It is suitable for all kinds of materials, such as shoes uppers, handbags, leather, sole and other leather goods with multi-layers.
Technical Features:
1. The auto feeding traveling head cutting machine is applicable to continuous cutting operation of nonmetal rolled materials of same specifications and large batches by die cutter. For example, used in such industries as football, volleyball, tennis and medicine etc.
2. the servo motor is adopted to control the horizontal movement of cutting head, and the multilayer materials are clamped by the cylinder for stepping feeding. The machine can automatically complete the cutting of materials and the displacement distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.
3. The machine has various working modes such as inching, manual and automatic etc. modes. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.
4. the machine has cutting modes of stagger, stagger blade reducing and die cutter rotation etc., which can save 10%~15% of raw materials.
5. As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine, so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.
6. with special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
7. Products of special specifications can be customized, Optional cutting board micro-movement device.
Specifications:
|
Model No.: |
YL-898Q |
|
Product name: |
Traveling head cutting machine |
|
Voltage: |
Three phase,380v |
|
Motor power: |
2.2KW |
|
Trolley power: |
0.75KW |
|
Color: |
Army green and orange |
|
Measurement: |
2200 × 1750 × 2050 (mm) |
|
Weight: |
2800 kgs |
|
Trolley: |
500*500mm |
|
Pressure: |
25T/30T |
|
Hydraulic oil: |
46# 48# 68# |
|
Function: |
cutting |
|
Automatic Grade: |
Automatic |
|
Driven type: |
Hydraulic |
|
Type: |
Cutting machine |
|
Cutting Table: |
1700*500mm |
|
Distance between cutting head and working table: |
180mm |
|
Condition: |
New |
|
Guarantee: |
1 year |
Application:
This automatic feeding traveling head cutting machine applies to the shaping and the cutting of one layer or several layers of the materials such as leather, rubber, canvas, nylon, cardboard.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
Tag: Automatic Feeding Traveling Head Cutting Machine, Hydraulic Plane Cutting Machine, Cutting Machine, Auto Feeding Cutting Machine, Hydraulic Traveling Head Cutting Machine
