0.6Mpa Automatic Heel Seat Shoe Pounding Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-268B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 18 days after received the formal purchased order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
Product Description

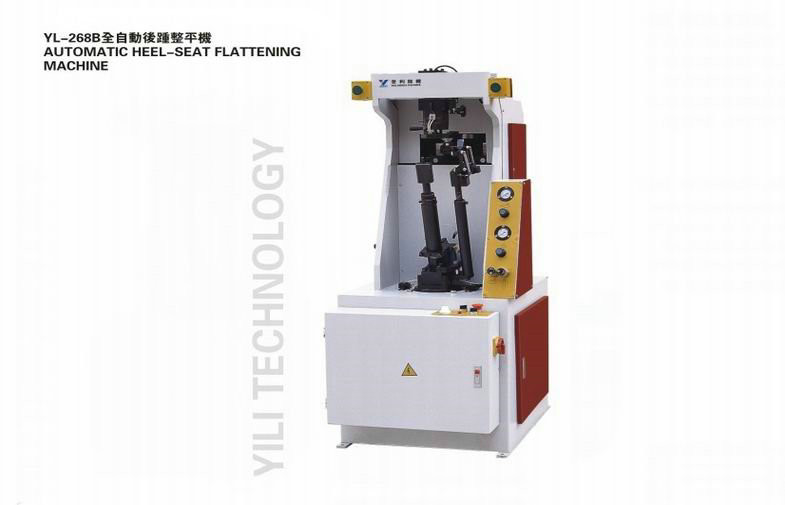

YL-268B Automatic Heel Seat Pounding Machine
Quick Detail:
- Name: Automatic Heel Seat Pounding Machine
- Condition: New
- Function: Heel seat pounding
- Voltage: 380V/220V
- Power: 0.37KW
- Air pressure: 0.6Mpa
- Dimensions: 700*900*1600mm
- Packing size: 900*100*1750mm
- N.W: 400kgs
- G.W: 420kgs
- Capablility: 2000prs/8hrs
0.6Mpa Automatic Heel Seat Shoe Pounding Machine For Shoe Making
Description:
YL-268B Automatic heel seat pounding machines is used for pounding shoes heel seat after lasting, with the hot mould heats up evenly. Using conical rolling wheel to automatically find heel seat, upper bottom on hot mould to vibrate and press it to achieve effect of pounding to remove wrinkle and of distinct outline. It is suitable for any men and lady shoes loading will be more convenient by oscillating of supporting rod, secondary pressurizing raises productivity through fast ascending.
Technical Features:
1. This Heel Seat Pounding Machine is suitable for any kinds of leathers, such as lambskin, cowhide and PU, etc. The heel-seat surface is much smooth after lasting. UP grade the quality and the aesthetic feeling of the shoes.
2. Automatic heel seat pounding machine has heated plate and roller for the heel seat leveling and edging.
3. Suitable for any size of shoes. The articulated stand allows an easy introduction of boots.
4. The machine grants to get a perfect coupling of the heel with its seat, thus improving considerably the shoe quality. The leveling system by plate allows to work any shoe size without replacing the plate. The safety protection device helps to keep safe operation.
Specifications:
|
Model No.: |
YL-268B |
|
Brand Name: |
YiLi |
|
Voltage: |
380V/220V |
|
Power: |
0.37KW |
|
Air pressure: |
0.6Mpa |
|
Dimensions: |
700 × 900 × 1600 (mm) |
|
Packing size: |
900*100*1750mm |
|
N.W: |
400 kg |
|
G.W: |
420 kg |
|
Color: |
Red & white |
|
Capability: |
2000prs/8hrs |
|
Function |
Pounding |
|
Automatic Grade: |
Semi-automatic |
|
Machine: |
Automatic Heel Seat Pounding Machine |
|
Type: |
Flattening Machine |
|
Condition: |
New |
|
Guarantee: |
1 year |
Application:
It applies to the moulding massage of heel for various men and women's shoes( especially high booths).
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Made in China
4. Fast Delivery Time
5. Best before, during & After-sales service
6. Competitive Price
Tag: Automatic Heel Seat Pounding Machine, Shoe Pounding Machine, Shoes Machinery, Heel Crowning Machine, Heel Seat Pounding Machine, Lasted Shoes Pounding Machine
