10-100T Digital Anchor Pull Out Test Equipment Civil Engineering Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO9001:2008 |
| Model Number: | ML |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1200-2000USD |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5 working days after received your payment |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100sets/month |
|
Detail Information |
|||
| Warranty Period: | 12months | Test Range: | 100KN-1000KN( Or Tailor Made) |
|---|---|---|---|
| Power: | Hydraulic | Display: | Digital |
| High Light: | NDT Testing Equipment,non destructive testing instruments |
||
Product Description
Anchor pull out tester, Anchorage force test apparatus, Engineering Non destructive Testing equipment
Applications
Pull out resistance test of anchor bolt, anchor cable, steel bar, expansion bolt, chemical anchor bolt, anchoring parts, also can test the glass curtain wall field pull out resistance, it’s kind of common civil engineering testing equipment.
Features
1. High quality steel cast body, quickreset, overload protection, digital readout, Dust-proof, Peak value keep
2. Dust-proof system and high quality sealing ring with hydraulic cylinder guarantee long tooling life Suitable for laboratory and field use
3. Hydraulic cylinder:
10T-30T: manual reset;
50T-100T: Self-reset, can equip electric pump
Technical specifications
|
Model |
Oil cylinder center hole |
Oil tank travel |
Testing range |
weight |
Normal anchorage device |
rod |
Conversation connector |
|
ML-10T |
27mm |
60mm |
0-100kn |
6Kg |
Φ6-20 |
M18 |
M6-20 |
|
ML-20T |
34mm |
80mm |
0-200kn |
13Kg |
Φ6-25 |
M22 |
M6-24 |
|
ML-30T |
45mm |
80mm |
0-300kn |
15Kg |
Φ6-32 |
M24 |
M6-27 |
|
ML-50T |
60mm |
120mm |
0-500kn |
25Kg |
Φ6-32 |
M30 |
M6-39 |
|
ML-100T |
90mm |
150mm |
0-1000kn |
58Kg |
Φ6-40 |
M40 |
M6-39 |

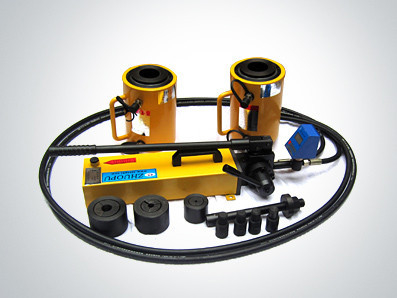

Standard configuration
1. Manual pump
2. Hydraulic cylinder
3. Digital pressure gauge
4. 3m quick coupling high pressure oil pipe

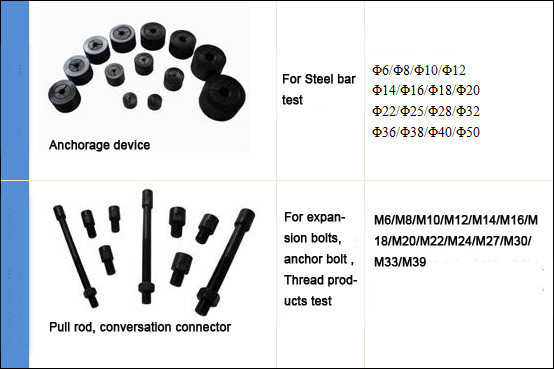

Optional parts
1. Anchorage device
2. Conversation head pull rod)
3. Carrying case
