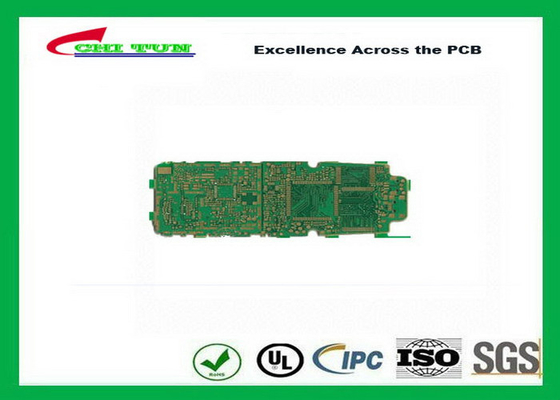

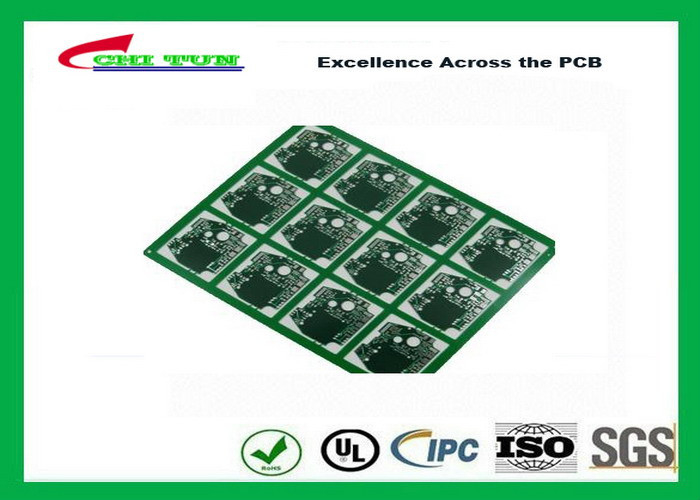

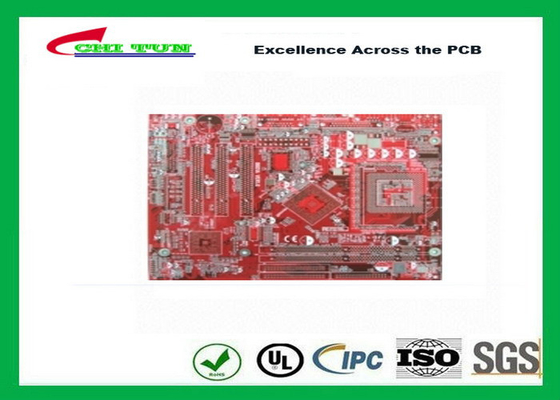

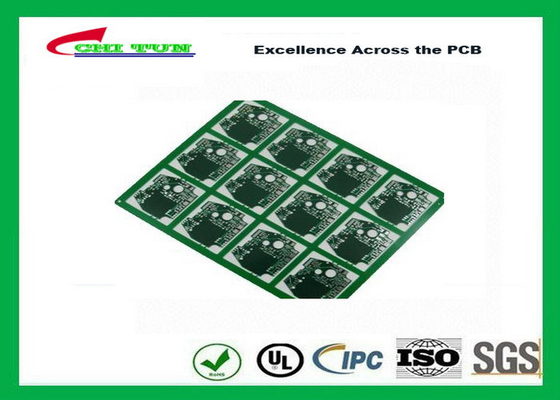

4 Layer Circuit Board Multilayer PCB FR4 1.2MM Finished CNC and Breaking Tabs
Product Details:
| Place of Origin: | China |
| Brand Name: | ChiTunPCB |
| Certification: | UL/ISO/ROHS/SGS |
| Model Number: | base on customers' requestion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | base on gerberfiles |
| Packaging Details: | Vacuum package |
| Delivery Time: | 8-15days |
| Payment Terms: | TT, LC, Western Union, D/A,, D/P,and others base on negotiation |
| Supply Ability: | 80000 Square Meters Per Month |
|
Detail Information |
|||
| High Light: | multiple layer pcb,multilayer circuit board |
||
|---|---|---|---|
Product Description
4 Layer Circuit Board Multilayer PCB FR4 1.2MM Finished CNC and Breaking Tabs
|
|
Product Description |
|
Model Number: |
CTEL0410119 |
|
Number of Layer: |
4Layer |
|
Material: |
FR4 |
|
Finish Thickness: |
1.2mm |
|
copper: |
35UM/17um |
|
PCB Size : |
169*287.5mm |
|
Line Width/line space |
6/8mil |
|
Min.Hole size : |
0.35mm |
| Surface finish : | LF-HASL |
|
Black solder mask |
|
|
|
no sillkscreen |
|
|
A.O.I and E-TEST all boards |
|
|
Milling |
|
Place of Origin: |
China |
|
Brand Name: |
CHITUN |
|
Certification: |
UL,ROHS,ISO |
|
Standard: |
IPC standard |
Application:
1. Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier
2. Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit
3. Office automation equipment: motor drive, and so on.
4. Automotive: Electronic regulator, lighter, power controller
5. Computer: CPU board, floppy disk drive, power supply devices
6. Power Modules: converter, rectifier,UPS,bridge solid-state relay
7. Lighting lamps: LED Lights ect.
