8 inch PCB Testing Equipment With Metallographic Double Plates Grinder
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | YM22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2Weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1000sets/years |
|
Detail Information |
|||
| Standard: | Double Plates Grinde | Diameter: | 8 Inch |
|---|---|---|---|
| Rotate Orientation: | Anticlockwise Or Clockwise | Pressures: | 0.1MPa～1MPa |
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description

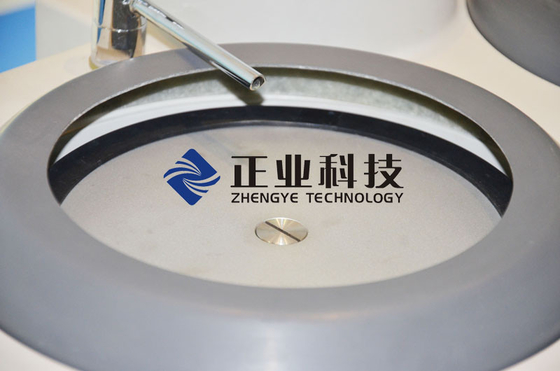

PCB Testing Equipment With Metallographic Double Plates Grinder
USAGE
It is used to mull and polish the micro slices of the metallographic analysis system. Makes slices smooth and lucency enough. For further analysis which is used for PCB, IC boards.
CHARACTERISTIC
1. High quality actuator and motor makes vibration low and life long.
2. With rational mechanical design, the plate circumgyrates stably.
3. The rotating speed can be changed setplessly, and in digital display.
4. Water and electricity is divided entirely which make our system safe and reliable.
5. Confirm to IPC-TM-650 Rev. DNO. 2.1.1 1998 standard.
6. Confirm to GB/T4677-20028.3 standard.
Technical Parmeter
|
Item |
YM22 |
|
|
Round Tube |
Diameter |
8 inch |
|
Round Tube |
Rotate Speed |
0～900±30rmp |
|
Round Tube |
Rotate Orientation |
Anticlockwise or Clockwise |
|
Water |
Pressures |
0.1MPa～1MPa |
|
Voltage & power |
Rating Voltage |
AC220V 50Hz |
|
|
Rating power |
500W |
|
Appearance Dimension |
715×455×269(L×W×H) |
|
|
Weight |
38kg |
|
|
Millstone yaw |
≤100um |
|
