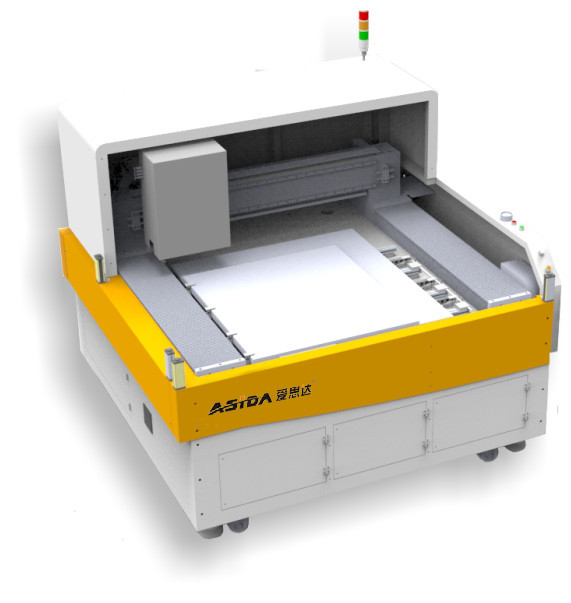

ALDI-CTS Series Digital Screen imager- -Advanced Laser Dynamic Imaging Maskless Lithography
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | ALDI-CTS-1221 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2weeks |
| Payment Terms: | T/T, D/P, L/C, Western Union |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Max. Screen Frame: | 1200mmx1100mm | Min. Screen Frame: | 200x200mm |
|---|---|---|---|
| Min. Feature Size: | 75um | Screen Frame Thickness: | 20~40um |
| Laser Power: | 15W | Wavelength: | 405nm |
Product Description
ALDI-CTS Series Digital Screen imager- -Advanced Laser Dynamic Imaging Maskless Lithography
Application
For high-precision large area screen imaging;
Using laser direct imaging technology for quick turn around, high resolution and low running cost
Product Features:
High Power Fiber-coupled laser
For throughout up to 20 panels/Hr; and data resolution up to 12000 DPI.
Better Imaging Quality and Flexible Photoresist
With 405nm semiconductor laser, and 20um optical resolution, it achieves superior image quality and data resolution.
Low Running Cost
With long life semiconductor laser, and optional LED illumination source, it gives high reliability and long life time.
Technical Parameters:
|
Item |
Specification |
|
|
Model |
ALDI-CTS-1221 |
ALDI-CTS-1211 |
|
Max. screen frame |
1200mmx1100mm |
|
|
Min. screen frame |
200x200mm |
|
|
Min. feature size |
75um |
50um |
|
Screen frame thickness |
20~40um |
|
|
Imaging engine |
DMD-XGA |
DMD-XGA |
|
Laser power |
15W |
|
|
Wavelength |
405nm |
|
|
DOF |
Auto-focus |
|
|
DPI |
12700 |
25400 |
|
Dimension |
2250*2200*1600 mm |
|
|
Weight |
3000KG |
|
|
Load/unload |
manual |
|
