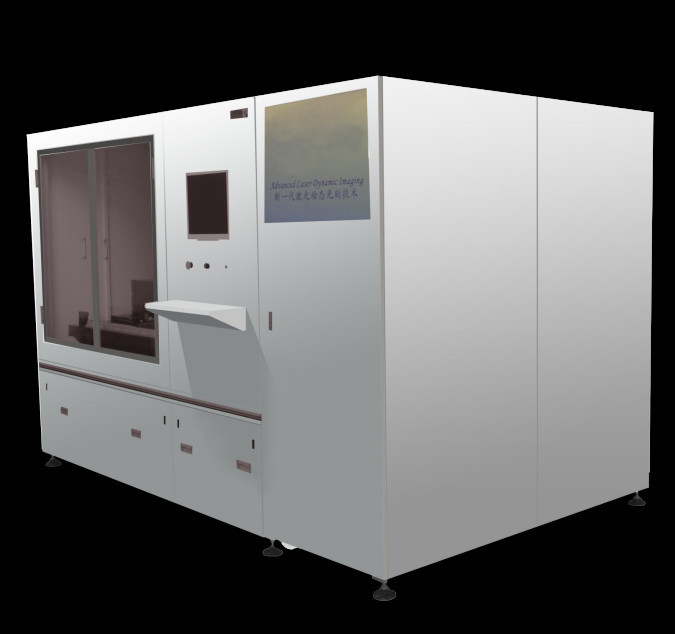

ALDI-OGS Series Maskless Exposure System for One-glass Touch Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | ALDI-OGS-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Model: | ALDI-OGS-800 | Maximum Substrate Size: | 810x710mm |
|---|---|---|---|
| Substrate Thickness: | 0~20mm | Effective Exposure Area: | 800x650mm |
Product Description
ALDI-OGS Series Maskless Exposure System for One-glass Touch Panel
Application :
Flexible exposure solution for one-glass-solution touch panel .
Provide precise aligment capability and economic exposure efficiency. No photomask required.
Product Features :
igh Power Fiber Coupied laser
Fiber coupled high power laser module gives lighting exposure speed on all conerntional photoresist. Flash operation mode leads to energy saving and long operation life time.
Flexible Multi-Engine Scanning Technology
Our modular optical engine gives the flexibility to adapt variable imaging heads for all kind of application requirements
Real-time scaling and Regional Distortion
Compensation Technology
The system generates images in real time, allowing the dynamic compensation for substrate scaling and rotation. Serial stamping and sub-panel distortion compensation.
Technical Parameter :
|
Item |
Specification |
|
Model |
ALDI-OGS-800 |
|
Maximum substrate size |
810x710mm |
|
Substrate thickness |
0~20mm |
|
Effective exposure area |
800x650mm |
|
Exposure mode |
One side |
|
Maximum intensity |
≥1500W/CM2 |
|
Data format |
Gerber274D/DXF |
|
Wavelength |
405nm |
|
Maximum laser power |
56W |
|
Alignment accuracy |
+/-1um |
|
CD and CD uniformity |
10um±15% |
|
Throughput/50mj/cm2/21x24” |
60side/h |
|
Depth of Focus |
±100um |
