Aluminum Packing Battery Online Auto X-ray Inspection Machine High Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | XG5300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Supply Ability: | 120 sets per year |
|
Detail Information |
|||
| Application: | Lithium-ion Battery Industry | Series: | X Ray Machines |
|---|---|---|---|
| Testing Capacity: | 50 Pieces Per Minute | ||
| High Light: | x ray inspection equipment,x ray inspection systems |
||
Product Description

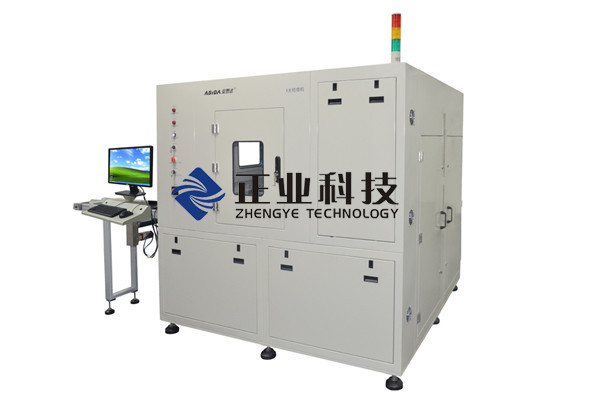

Aluminum Packing Battery Online automatic X-ray inspection machine
Brand : ASIDA
Model: XG5300
Testing products : aluminum packing battery
Online automatic X-ray inspection machine Usage
This product is mainly used in battery industry. X ray penetrate the inner of battery with X ray transmission
principle. Automatic detect the internal structure and the coverage of the positive and negative of the battery.
Automatically sorting OK/NG products.
Product characteristics
Product features
1. Automatic detection
High automation, automatic loading,detection, sorting qualified/NG products.
2. High efficiency
The machine is suitable for batch inspection with cam indexers controlling eight degrees turntable running in
high speed and two sets of imaging system.
3. Images and data real-time online display

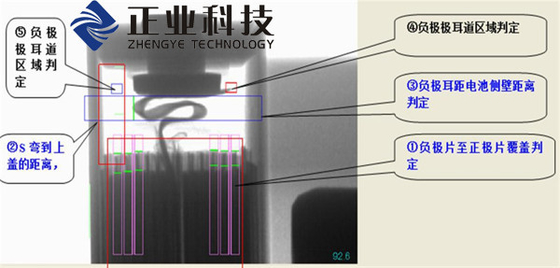

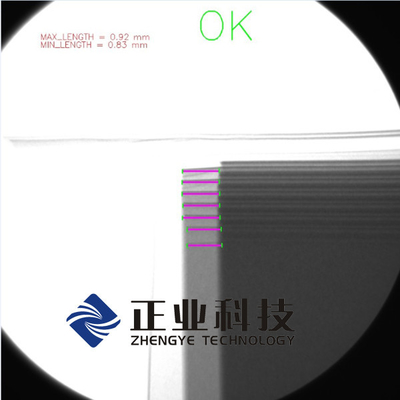

Test data and images of many parts of the same battery is shown in the same software interface, convenient
observation recognition.
4. Quick changing model
Only replace jig if changing test products.
5. Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet
safety standards.
Inspection process:
- Loading products:

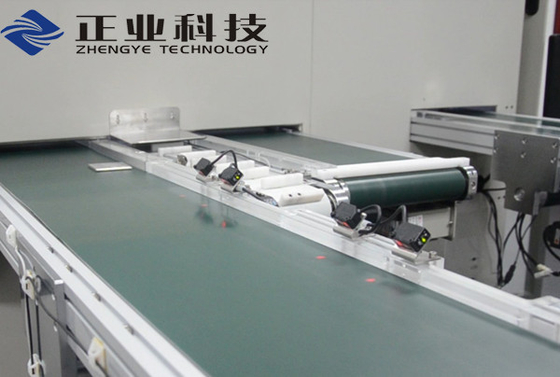

Testing battery is loaded automatically into the X - RAY detection equipment.And transmission speed can be
adjusted according to requirement.
2. Inspection work place:
Four indexing turntable grab the battery and transit it to eight degrees detection place in high speed . 2 sets of
online detection of imaging system.
3. Jig locating:
All testing products are placed to the same position to ensure the accuracy of measurement.
4. Unloading production:
Unloading in three channels, OK/ tab NG/ plates NG.
Technical parameters
|
X-ray Tube |
Tube Voltage |
MAX 90KV |
|
Tube Current |
MAX 89uA |
|
|
Focal Spot Size |
5μm |
|
|
Cooling Mode |
Strong wind cooling |
|
|
Image-forming System |
Field of View Range |
2"/4" |
|
Resolution |
75/110 lp/cm |
|
|
Camera Resolution |
1024*1024 pixels |
|
|
Detection Precision |
Repeat accuracy |
60μm |
|
Efficiency |
Detection Efficiency |
≥50 PPM |
|
False Rate |
≤2% |
|
|
Missing Rate |
0.0% |
|
|
Excellent Products Rate |
≥99.5% |
|
|
Safety Standard |
International Radiation Safety Standards |
≤1usv/hr |
