Automatic Hydraulic Heel Nailing Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 25 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
Product Description

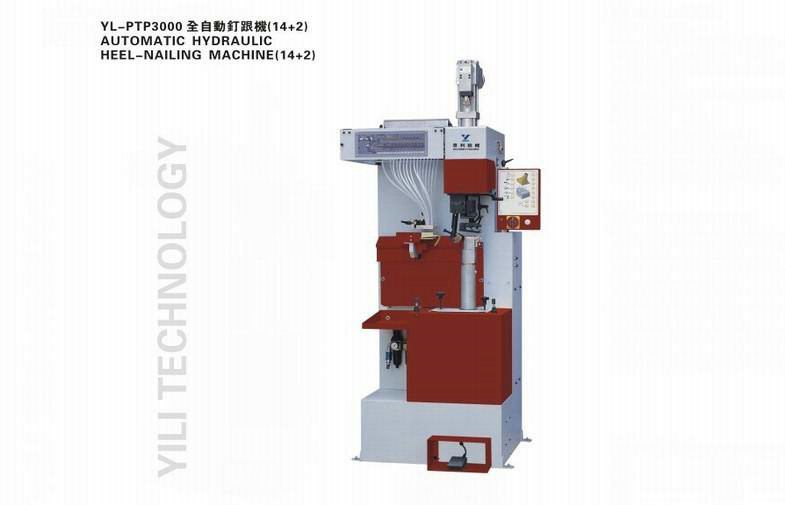

YL-3000 Automatic Hydraulic Heel Nailing Machine
Quick Detail:
- Product name: Automatic Hydraulic Heel Nailing Machine
- Automatic Grade: Automatic
- Function: High heel nailing
- Machine type: Auto Hydraulic Heel Nailing Machine
- Condition: New
- Control: PLC
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Red & White
- Air pressure: 0.6MPa
Automatic Hydraulic Heel Nailing Machine Pneumatic 380V For Shoemaking
Description:
The Automatic Hydraulic Heel Nailing Machine is in very good technical stand, with fully programmable nailing sequence and 14 nails plus two screw-feeder, Possibility to adjust the height of the small hammers and the pressure of the fix system for a better nailing. It can be adjusted for different height shoes heel by oil cylinder, Easy to operate. In a short word, this machine is the promoted one of heel nailing.
Technical Features:
1. Fully programmable nailing sequence;
2. 14 nails plus 2 screws-feeder divided into six sections;
3. Movable nailing column for boots;
4. Nailing regulation device;
5. Quick change nailing form and pneumatic hold down for high and flat heels;
6. Automatic nail block will release itself in case of nail jam;
7. High efficiency and low noise;
8. Auto-diagnostic for quick trouble shooting;
9. Choose north/south or east/west working position according to different request;
10. Pneumatic hold down for high and flat heels;
11. Completely automatic system test.
Specifications:
|
Model No.: |
YL-3000 |
|
Product name: |
Auto Hydraulic Heel Nailing Machine |
|
Brand name: |
YiLi |
|
Certification: |
CE |
|
Nails height: |
6~28mm |
|
Voltage: |
380V or 220V |
|
Power: |
2.0KW |
|
Color: |
Red & white |
|
Measurement: |
960 × 1080 × 2090 mm |
|
N.W: |
480 kg |
|
Capability: |
2000prs/8hrs |
|
Air Pressure: |
6bar |
|
Condition: |
New |
|
Warranty Period: |
One year |
Application:
Suitable for clenching heel pieces of different kinds of men’s and women’s boots or shoes.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
Tag: Automatic Hydraulic Heel Nailing Machine, Automatic Heel Nailing Machine, Italian Heel Nailing Machine, Heel Nailing Machine, Full-automatic Heel Nailing Machine
