Automatic PCB Testing Equipment 2D Visual Measurement Insterment
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | BQ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2WEEKS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Automatic 2D Visual Measurement Machines | Max Loading: | 30KG |
|---|---|---|---|
| Objective Lens Focal: | 82mm | Objective Lens: | 0.75X_5X |
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description
Automatic PCB Testing Equipment 2D Visual Measurement Insterment
Product Attributes
|
Product name |
Automatic 2D Visual Measurement Machines |
|
Brand Name |
ASIDA |
|
Model Number |
/ |
|
Place of Origin |
China |
|
Packaging Details |
Wooden Carton |
Usage
Two-dimensional measuring includes: points, lines, circles, rectangles, angle, contour, shape, surface shape and other geometric elements. A three-dimensional measuring probe is optional.
Characteristics
-
Solid granite base and column for increased stability.
-
Air bearings on the X and Y axis for extended productivity.
-
High quality German made edentulous lead screw are used on the machine.
-
Long-life LED ring provides a cold light source that will not produce thermal deformation.
-
Optical system provides bright and clear images.
-
Panasonic three-axis servo motor drive.

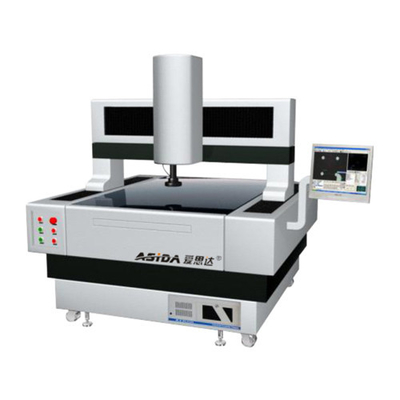

Please note image is of 7060 model, other models may vary slightly in appearance
Client:
|
|
|
ASIDA70560A |
ASIDA8070A |
|
|
(X.Y.Z)(X.Y.Z Stroke) |
600×500×200 |
700×600×150 |
800×700×200 |
|
|
(Loader Size) |
650×550mm |
750×650 mm |
850×650mm |
|
|
(Max Loading) |
30KG |
|||
|
(Base Materials) |
00 00 Granite |
|||
|
(Objective Lens Focal ) |
82mm |
|||
|
(Objective lens) |
0.75X_5X |
|||
|
(Total Max Magnification) |
30X_230X |
|||
|
(Grating Solution) |
≤0.001mm |
|||
|
XY(Linear Accuracy) |
≤(3+L/200)um (L mm) |
|||
|
(Repeat Accuracy) |
≤±0.003mm |
|||
|
(mm)(Total Machine Size) |
1300×1400×1800 |
1500×1400×1800 |
1550×1650×1800 |
|
|
(Total Machine Weight) |
1800Kg |
2000Kg |
24800Kg |
|
|
(Measuring Software) |
ASIDA VMA 3.00.01() |
|||
|
(Data Output Format) |
DXFEXCELWORD |
|||
|
(OS) |
WindowsXP Pro |
|||
|
PC(PC Requirement) |
CPU:(Dul Core),≥2G(Memory),≥320G(Hard Disk) |
|||
|
(Power) |
220/50HZ(200V/50HZ) |
|||
|
( Work Environment) |
(Temperature):20+/-2OC;(Humidity):45%~75%;(Vibration):<0.002g,<15Hz |
|||
|
(Optional Accessories) |
NAVITAR(USA NAVITAR Lens System);Renishaw |
|||
|
(Remark) |
(The stroke of machine can be customized depending customer requirements) |
|||
