Bag and shoes factory X-Ray Inspection Machine 0.101mm copper wire penetrate
Product Details:
| Place of Origin: | China |
| Brand Name: | SECUSCAN |
| Certification: | CE, ISO |
| Model Number: | AT5030A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD+1-10000+unit |
| Packaging Details: | Wooden Packing |
| Delivery Time: | One week when stock available, One month when no stock. |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 300 sets/month |
| Departure Port: | any port in China |
|
Detail Information |
|||
| Tunnel Size: | 500mm*300mm | Penetration: | 8mm Steel , 0.101 Copper Wire |
|---|---|---|---|
| Logestic Cargo Inspection And Bus Station,train Station Security Checking Machine: | 1830mm(Length) *810(Width)mm* 1480mm(Height) | Weight: | 450KG |
| High Light: | baggage x ray scanner,X-ray baggage scanning |
||
Product Description
Bag and shoes factory X-Ray Inspection Machine 0.101mm copper wire penetrate

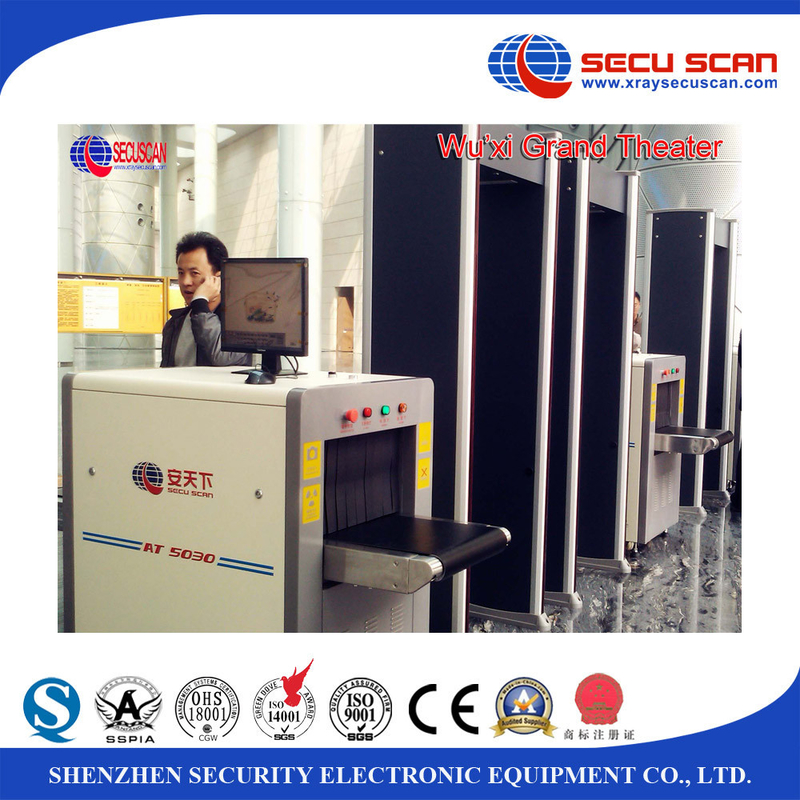

The AT-5030A easily accommodates the inspection of hand baggage and parcels.
Special function for factory quality control like toy, shoes, bag metal inspection.
We have already supplied this machine to Taiwan,Hongkong. Japan, Spain for factory suing.
The AT-5030A uses a high-resolution x-ray detector array that increases detection sensitivity, improves image resolution and optimizes image presentation.
| Tunnel Size | 500(Width) *300(Height)mm |
| Dimensions | 1830mm(Length) *810(Width)mm* 1480mm(Height) |
| Approximate Gross weight | 450kgs |
Applications:
Commercial buildings;
- Factories(to find needle in clothing, shoes, bags)
- Courthouses;
- Embassies;
- Government buildings;
- Military installations;
- Prisons;
- Hotels;
- Schools;
- Convention centers;
- Security checkpoints.
- Excellent system for schools, hotels, convention centers and event-based security requirements
General Specification:
Tunnel Size------------------500(W)*300(H)mm
Conveyor Speed------------0.22m/s
Conveyor Max Load-------150kg
Dose per Inspection--------< 2.9μGy/h
Resolution-------------------< 0.101mm Copper Wire
Penetration-------------------8mm Steel
Film Safety-------------------Guarantee ISO1600 Film
X-ray Leakage---------------<0.05 μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct----------------- Upward
Generate angle-----------------60 degree
Anode power-------------------0.4 to 0.5mA
Cooling / Duty Cycle----------Oil Cooling /100%
Image System:
X-ray Sensor-----------------L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Monitor-----------------------High Resolution Color, LCD Accord, 17 inch
Image Processing-----------Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level-----------4096
Image Max Resolution------1024 * 1280 pixel
Image Processing------------24bit for processing real time
Image storage----------------Storage 60000 pictures in real time
Zones & Zoom---------------1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Installation Data:
Operation temperature/Humidity---------0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity--------- -20°C-60°C/20%-95%(non-condensing)
Operation Power----------------------------220VAC(±10%)50±3Hz
Power Consumption------------------------1.0 KW (max)
