CCD camera Co2 Laser Cutting Machine Cut Woven Small Labels and Trademarks
Product Details:
| Place of Origin: | China |
| Brand Name: | Hunst LASER |
| Certification: | CE, FDA |
| Model Number: | HS-1390S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Exported wooden case according to the international rules. |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Laser Type: | CO2 | Applicable Material: | Acrylic, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Bamboo |
|---|---|---|---|
| Cutting Thickness: | 15mm Acrylic (80W) | Cutting Area: | 1300 X 900mm |
| Cutting Speed: | 0-800mm/S | CNC Or Not: | Yes |
| Cooling Mode: | Water Cooling | Control Software: | DSP |
| Graphic Format Supported: | AI, PLT, DXF, BMP, DST, DXP | Laser Source: | CO2 Glass Laser Tube |
| Laser Wavelength: | 10640nm | Running System: | Best Step Motor |
| Optical Lens: | II-VI Lens From Singpore | Guide Rail: | Linear Guide Rail From Taiwan |
| Power Consumption: | 1.5KW | Color For Machine Frame: | Grey, Blue, White Are Available |
| OEM Service: | Available | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| High Light: | Co2 laser engraving cutting machine,Co2 laser engraving machine |
||
Product Description
CCD camera Co2 Laser Cutting Machine Cut Woven Small Labels and Trademarks
Brief Introduction:
Hunst LASER always pays great attentions to designing suitable cutting machines for such industries as textile embroidery, business logo and woven label. The HS series Laser cutting machine with CCD camera system is specially developed to meet the demands for cutting irregular label, embroidery badges and the likes. The laser cutting machine with camera incorporates the cutting-edge DSP technology and world-leading camera positioning and image recognition system, offering a complete and efficient solution for cutting irregular design.
High efficiency is achieved through the following features:
1. The design of the shortest cutting path saves the time by 10%-20%.
2. The automatic camera positioning system can search the work piece and fix position automatically and precisely, so there is no need to worry about making errors even when operators feel tired.
3. The function of high-speed continuous curve cutting ensures the cutting line will neither be deformed nor distorted.
4. Equipped with imported high-performance motor, the auto-position camera laser cutting equipment can cut faster with higher precision.

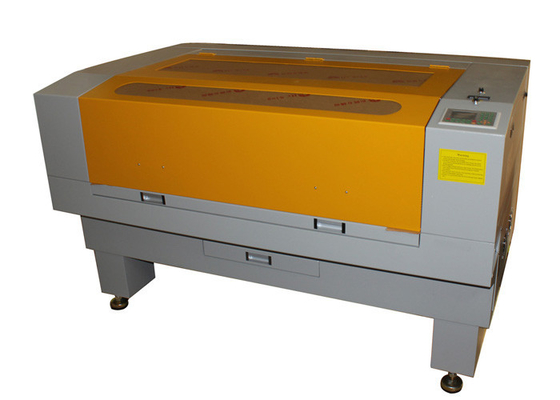

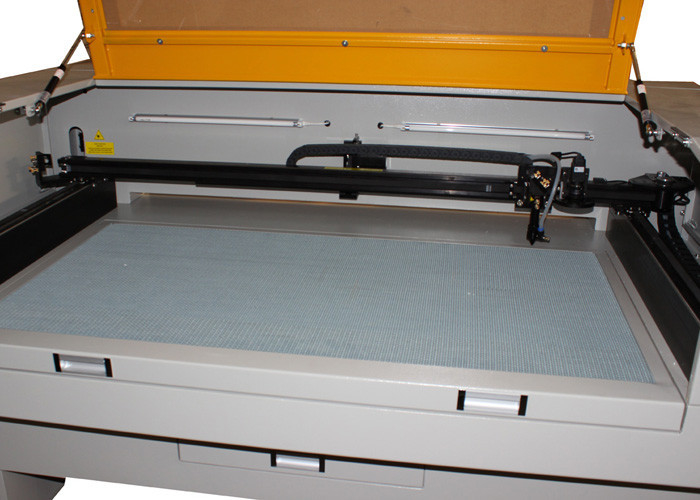

Detailed Pictures:
Applications:
The cutting machine with CCD camera system is the best choice for many industries such as textile embroidery, business logo, woven label, apparel and so on. And it is often used as logo laser cutting machine, cloth laser cutting machine, etc.
Technical Parameters of Laser Cutting Machine with CCD Camera System
|
Laser power |
65W/80W |
|
Laser type |
CO2 glass tube |
|
Operating voltage |
AC220V(or 110V)±10% 50Hz/60Hz |
|
Maximum cutting speed |
800mm/s |
|
Repeat position accuracy |
0.01mm |
|
Minimum character |
English letter: 1*1mm |
|
Operating temperature range |
5-45℃ |
|
Resolution |
≤4500dpi |
|
Control mode |
DSP |
|
Transfer mode |
By USB cable |
|
Laser tube service life |
3500 hours |
|
Software environment |
Windows 2000/XP/Win7 |
|
Cooling type |
Water Cooling System |
|
Acceptable graphic format |
BMP, HPGL(PLT), PEG, GIF, TIFF, PCS, TGA, DST, DXP, DXF, DWG, CDR (all formats of Tajima, Richpeace, Barudan and other embroidery software) |
|
Acceptable software |
Label-cutting software |
|
Camera resolution |
3,200,000 Pixels |
|
Packing type |
Wooden case |
HS Series Related Models
|
Model |
Effective working travel |
Weight |
|
HS-9060S |
900*600mm |
250kgs |
|
HS-1280S |
1200*800mm |
325kgs |
