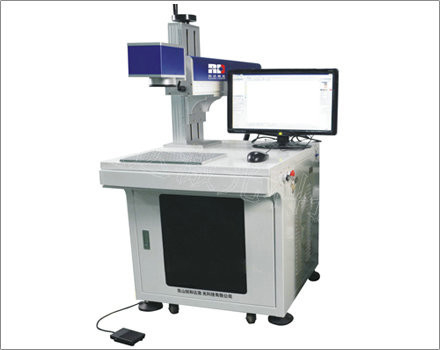

CO2 Laser Marking Machine / carving machine Laser Cutting Machines for marking / carving
Product Details:
| Place of Origin: | China |
| Brand Name: | WKH |
| Certification: | ISO9001:2000 |
| Model Number: | N/A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong wooden package in accordance with buyer’s requirements |
| Delivery Time: | 30~180 days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 1~30 sets per month |
|
Detail Information |
|||
| High Light: | wire cut edm machine,stainless steel laser cutting machine |
||
|---|---|---|---|
Product Description
Suitable materials:

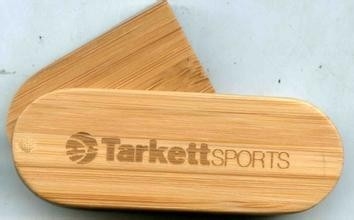

leather, construction ceramics, acrylic, wooden material, paper, baboon, ABS, PVC, EP, epoxy resin, glass, rubber Automatic Laser marking machine
Description:
This machine is mainly utilized CO2 as working substance, the wave length is10.6μm. the laser is generated by CO2 when high voltage is passing through the electrical pole, the tube will come out glow discharge, then it makes gas molecule to transmit laser. The transmitted laser is amplified by optical mirror and becomes laser beam. The machine can mark automatically through converting laser beam orbit by computer.
product features
Equipment with U.S original assembled CO₂laser generator ,high speed scanning galvanometer, reasonable design make it super high speed and precision and operation steady with long term life and also can work for 24-hour long.
The control soft ware is under windows interface, it can read Coredraw, AutoCAD, Photoshop and so on as output texts, support the formats of PLT,DXF,PCX,BMP and so on as graphical documents, use directly SHX,TTF type fonts, support automatically coding the changeable texts, series number, batch number, date, variety of bar codes and two-dimension code.
Applications:
This machine can be used for a lot kinds of nonmetal material and some kinds of metal material such as leather, construction ceramics, acrylic, wooden material, paper, baboon, ABS, PVC, EP, epoxy resin, glass,rubber and so on. Applicable industries are very large like beverage packaging, pharmaceutical packaging, plastics, textile, leather, wooden material, craft gifts, electronic component, telecommunication, watch, glasses, printing and so on.
Specifications:
| Model No. | WK-LM10 | WK-LM30 | WK-LM50 | WK-LM100 |
| max. laser power | 10W | 30W | 50W | 100W |
| Laser wave length | 10.64u m | 10.64u m | 10.64u m | 10.64u m |
| Repetition precision | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
| Marking area | 100 х100mm | 100 х100mm | 100 х100mm | 100 х100mm |
| Marking liner speed | 7000mm/s | 7000mm/s | 7000mm/s | 7000mm/s |
| marking depth | ≤3mm | ≤5mm | ≤7mm | ≤10mm |
| Cooling type | Air cooling | Air cooling | Water cooling | Water cooling |
| Electricity voltage | 220V/50HZ/3.5A | 220V/50HZ/6A | 220V/50HZ/10A | 220V/50HZ/20A |
| Dimension(l*w*h) |
800×700×1100
|
800×700×1100
|
1500×520×1150 | 1500×520×1150 |
