Custom Double-sided Flexible PCB Board Polyimide Substrate Socket Connector Gold
Product Details:
| Place of Origin: | China |
| Brand Name: | Cayera |
| Certification: | ROHS,UL,ISO9001 |
| Model Number: | FPCB-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 1-4 weeks after get the full payment |
| Payment Terms: | T/T 100% before shipment |
| Supply Ability: | 50000 Pcs/Year |
|
Detail Information |
|||
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 | Min Solder Mask Thickness: | 10um |
|---|---|---|---|
| Profiling: | Punching, Routing, V-cut | Surface Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm | Flammability: | UL-94V-0 |
| High Light: | flexible pcb board,flexible circuit board |
||
Product Description

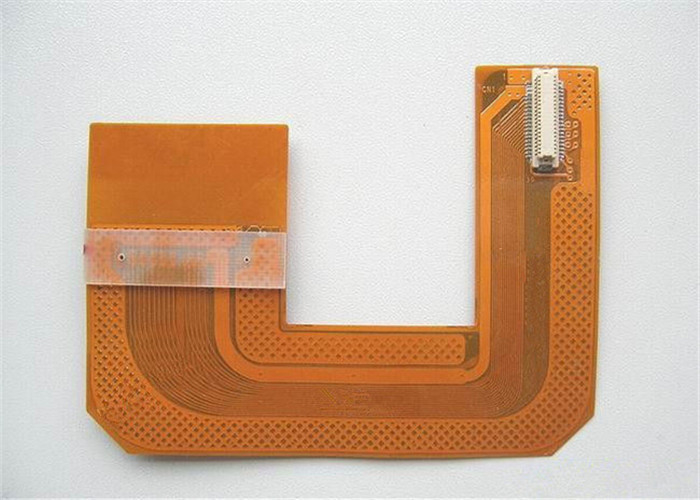

Custom Double-sided Flexible PCB Board Polyimide Substrate Socket Connector Gold
Applications
Embedded Software, Power Converter, Instrumentation, Medical, Telecom, UPS, Automotive, Wearable Electronics, LCD Module Display, ESD Measurement Tools, Housing, Electronics, Remote Control, Electronic Television Audience Measurement Systems,Embedded Systems, Audio Equipment, Effects Controller, Electronic Musical Device,LED, LCD, Voice Announcement System, Digital Theater Systems, Vacuum Tube Electronics Displays, Audio Systems, Automatic Tracking Satellite Television, Computer Extender Products,Digital Audio , Repeater Systems, Digital Projection, Digital Video Management Systems, Recorders, Scan Converters, Show Control, Special Effects Systems ect.
Features
- It can be bent, folded and deformed freely. Its coil radius is small and it can be moved freely along X, Y, Z axis separately.
- Occupy small space
Since it is light and thin, it makes best use of the narrow space in the instruments. (average thickness 1.1-0. Am) - Light weight
Its weight is very light because the design of FPC is not based on mechanical strength but current load. - Good seal capability
The flexible board could be designed for low- tensile seal enduring the adverse environment. - Steady transmission
The wiring pattern and the conductor distance can be freely designed according to electric parameters. Once the pattern is finalized, parameters of R. L. C is steady accordingly. - Easy assembly
The property of terminal is good enough to be fixed to any equipment by soldering, inserting, riveting and gluing. Manual mistakes in traditional wiring are avoided. - Good insulation
We selected the materials with good insulation property, such as polyimide, polyester, etc. Usually, the wiring is covered, so the insulation is greatly strengthened.
Specification:
|
Types: |
Single-sided, Double-sided, Multi-layers (max 6 layers) and |
|
Surface Finishing: |
HASL(LF), Gold plating, Electroless nickel immersion gold, |
|
Base Material: |
Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
|
Copper Foil: |
ED/RA |
|
Min. Line Width: |
2 mil |
|
Min. Line Spacing: |
2 mil |
|
Min. Hole Size: |
0.2mm |
|
Max. Board Size: |
800x400mm |
|
Min. Board Thickness: |
0.1mm |
|
Min. Solder Mask Thickness: |
10um |
|
Solder Mask Types: |
Green, yellow, black, white, blue, red and clear |
|
Profiling: |
Punching, Routing, V-cut |
|
Soldering Thermal Resistance: |
300°C/10 seconds |
|
Peeling Strength: |
≥1.4kg/cm |
|
Surface Resistance: |
105mΩ |
|
Insulation Resistance: |
105mΩ |
|
Dielectric Strength: |
9.8x105v/cm |
|
Flammability: |
UL-94V-0 |
|
Performance Test: |
100% electrical and electricity performance test |
Process technology
