Customized Laser Marking Engraving Machine / UV Laser Drilling Equipment of FPC
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Certification: | CE |
| Model Number: | JG23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Minimum Processing Hole Diameter: | 25μm | Maximum Processing Size: | 560X650mm |
|---|---|---|---|
| Model Number: | JG23 | ||
| High Light: | laser drilling equipment,laser drilling system |
||
Product Description

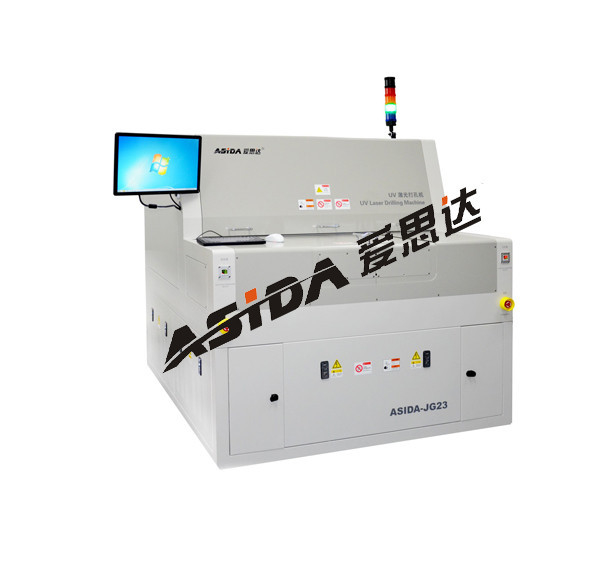

Ultraviolet Laser Marking Engraving Machine / UV Laser Drilling Machine
Product Attributes:
|
Product name: |
UV Laser Drilling Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG23 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Drilling Machine USE:
The machine is used in drilling through-holes,blind hoes of FPC and cutting the CVL/FPC/RF.
Laser Drilling Machine Features:
1. High speed: Adopting the most advanced IFOV dynamic processing technology,to realize the
galvanometer and platform motion processing at the same time which greatly improve the equipment
processing capacity;
2. High quality:Adopting the advanced laser,high-performance galvanometer, faster pulse
frequency,higher peak light rate, more fine cutting path planning;
3. Smart: 3 CCD visual system with high and low times lens, more intelligent
4. Customized: customizable 250 mm or 500 mm wide RTR automatic loading system and various
kinds of software functions
5. Safety: professional security module control system, equipment and personnel security more secure
6. stable: a new design concept, each procedure, strives for perfection,
UV Laser Drilling Machine Client:
|
Project |
Specifications |
|
Model |
ASIDA-JG23 |
|
System processing accuracy |
±25μm(ZHENGYE conditions) |
|
Drilling speed |
>300 holes per one second |
|
Roundness |
≥95% |
|
Differences between up and down hole diameter |
10um |
|
Objects |
① Maximum processing size:560X650mm |
|
② Minimum processing hole diameter:25μm |
|
|
③ Drilling through-holes,blind hoes |
|
|
Machine size |
1600mm×1733mm×1940mm |
|
Weight |
2300Kg |
Enterprise Spirit :
Creative talent beyond the challenge to be successful.
Were as follows: perseverance in the face of the objectives set, assiduous, hard and persistent, never give up; does not change the established goal, only to change the working methods and strategies.
Enterprise Mission :
Honesty, hard work, innovation and care.
Is the industry people think: credit management + intensive development, is the only way of success.

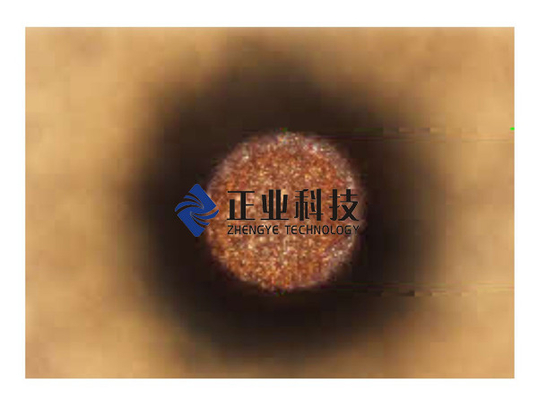

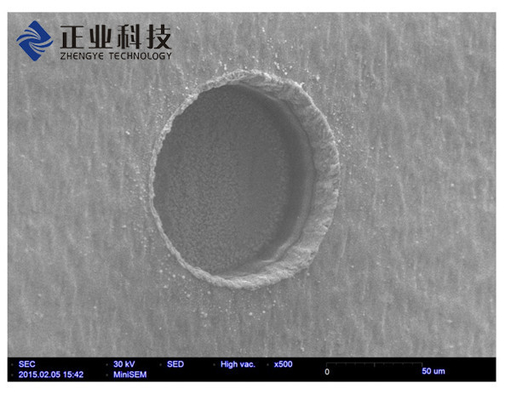

Drilling Samples :
