Digital Display Rubber Testing Machine , Plastic Material Charpy Impact Testing Equipment
Product Details:
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | HAIDA |
| Certification: | ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC |
| Model Number: | HD-R802 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
| Supply Ability: | 300 Sets per Month Haida |
|
Detail Information |
|||
| Power: | Electric | Port: | ShenZhen |
|---|---|---|---|
| High Light: | rubber tensile testing machine,rubber hardness tester |
||
Product Description
Digital Display Rubber Testing Machine , Plastic Material Charpy Impact Testing Equipment
1.Used to test the fastness of plastic material
2.Digital dispaly
3. Capacity optional
1.The usage
Digital Display Plastic Material Charpy Impact Testing Equipment is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber reinforced plastics, ceramics, cast stone, insulation material and other non-metal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.
2.Digital Display Plastic Material Charpy Impact Testing Equipment Specification:
|
Impact speed |
3.4m/s |
|
Impact energy |
5.5J,4.0J |
|
Pendulum angle |
150° |
|
Impact center distance |
0.332m |
|
Pendulum power distance |
Pd5.5=2.8355N.m |
|
Distance between impact blade and jaw |
22mm±0.2mm |
|
Blade filleted radius |
R=0.8mm±0.2mm
|
|
Energy loss |
4.0J ≤0.05J;5.5J ≤0.10J |
|
Temperature |
15—35°C |
|
Power |
220V/50Hz/200W |

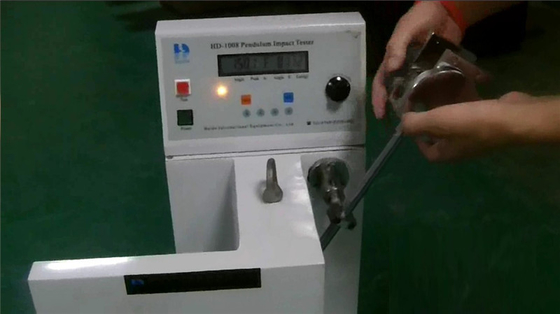

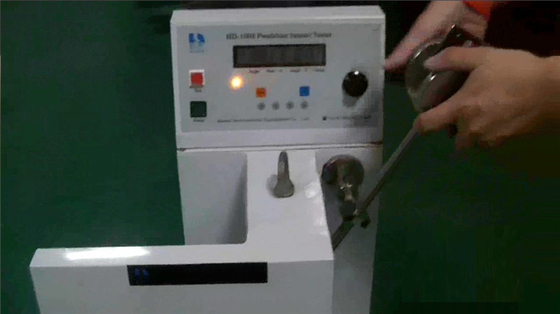

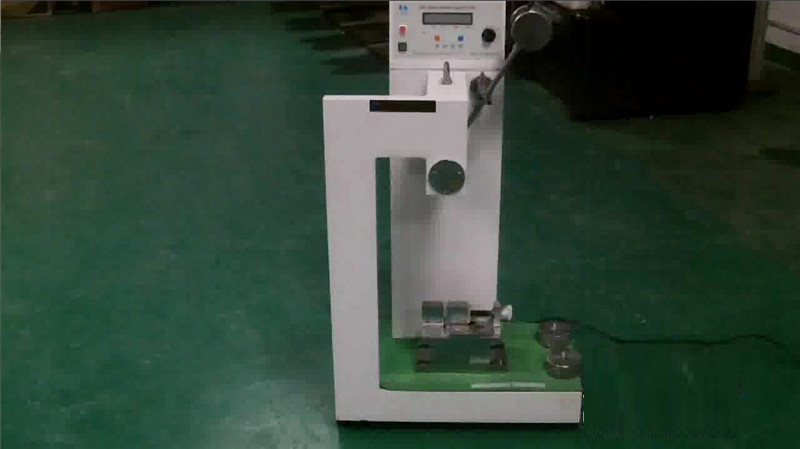

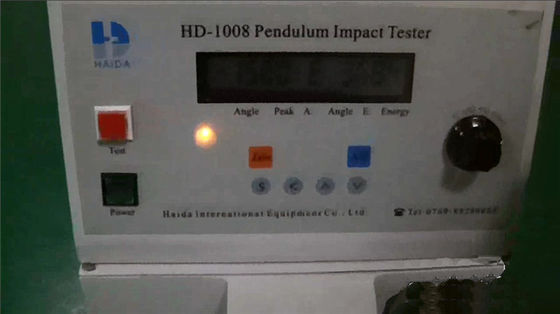

3. The pictures
