Dust - Free PP Cutting Machine , Cutting width 200 ～ 1270mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | CQ1000 / CQ2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Moving Speed: | ≤60m/min | Cutting Length: | 50～750mm |
|---|---|---|---|
| Cutting Accuracy: | Cutting Accuracy | ||
| High Light: | prepreg cutting machine,pp cutter |
||
Product Description
Dust-Free Cutting Machine for PP (Automatic) / Dust-Free Cutting Machine for PP (Prepreg)
Product Attributes:
|
Product name |
Dust-free Prepreg Cutting Machine |
|
Brand Name |
ASIDA |
|
Model Number |
CQ1000 / CQ2000 |
|
Place of Origin |
China |
|
Packaging Details |
Wooden Carton |

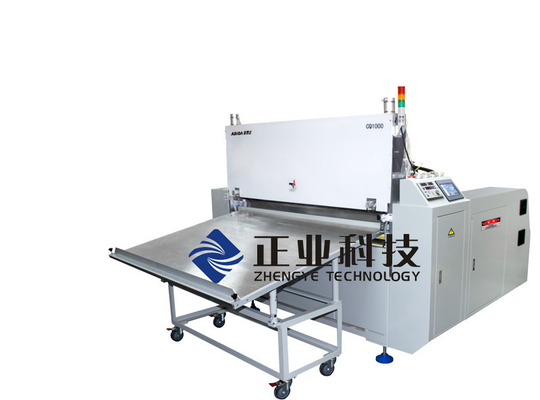

Dust-free Prepreg Cutting Machine CQ1000 USE:
The machine is used for cutting rolled prepreg.to solve the problem of prepreg spreading and large dust in cutting and after cutting.thus to improve the cutting accuracy and quality.
Dust-free Prepreg Cutting Machine CQ1000 Features:
1, Precise: Adopting high-precision drive mechanism and servo control system.
2, High quality:Tidy cutting edge,automatic edge sealing ,no wiredrawing and no obvious dust.
3, Efficient:
① PP after cutting can be used directly with no edge sealing and vacuuming;
② PP can stack automatically;
③ Parameters can be packed up and brought up directly.
Dust-free Prepreg Cutting Machine CQ1000 Client:
|
Cutting accuracy |
±1mm |
|
Quality |
Tidy cutting edge,no white edges&layered&wrinkled and charred carbonation; compared with the traditional purely mechanical cutting, more than 80% dust reduced |
|
Efficiency |
① Cutting frequency(take 500mm length as calculation):≤13times/min |
|
② Moving speed:≤60m/min |
|
|
Objects |
① Cutting length:50～750mm |
|
② Cutting width:200～1270mm |
|
|
③ Cutting thickness:0.05～0.3mm |
|
|
Dimensions |
2600*2300*1700mm |
|
Weight |
1500Kg |

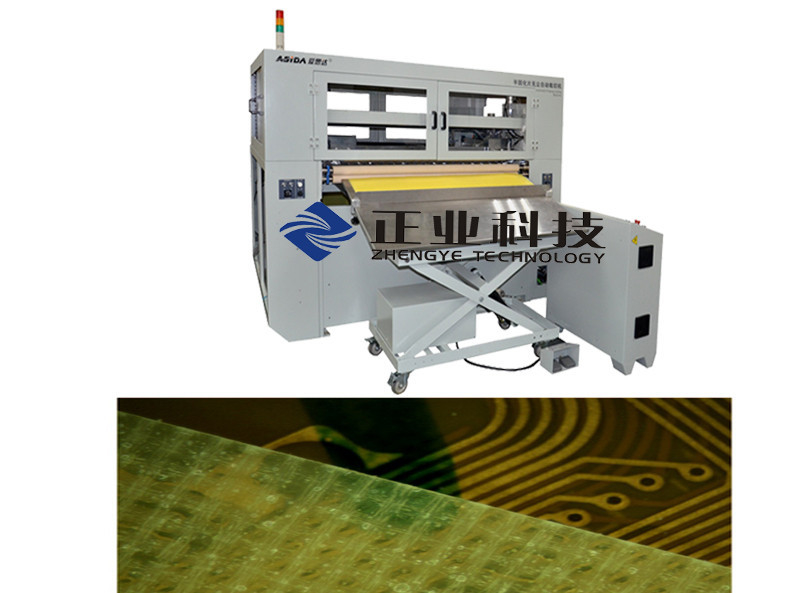

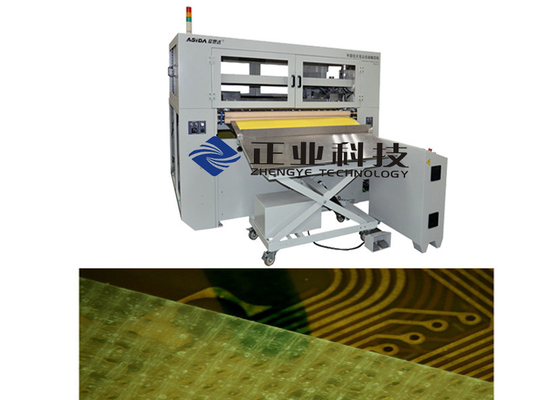

Dust-free Prepreg Cutting Machine CQ2000 USE:
The machine is used for cutting rolled prepreg. It solved the problems such as dust pollution, glass fiber falling down, etc. during traditional mechanical cutting.
Dust-free Prepreg Cutting Machine CQ2000 Features:
1, Precise: Adopting high-precision drive mechanism and servo control system.
2, High quality:Tidy cutting edge,automatic edge sealing ,no wiredrawing and no obvious dust.
3, Efficient: ①The cutting efficiency has been improved by preheating and sending the material at the same time
,②After cutting the material can be used directly, no need of edge sealing and vacuuming;
③PP can stack automatically and the rim material can be rolled up automatically;
④Parameters can be packed up and brought up directly.
Cutting Examples:
