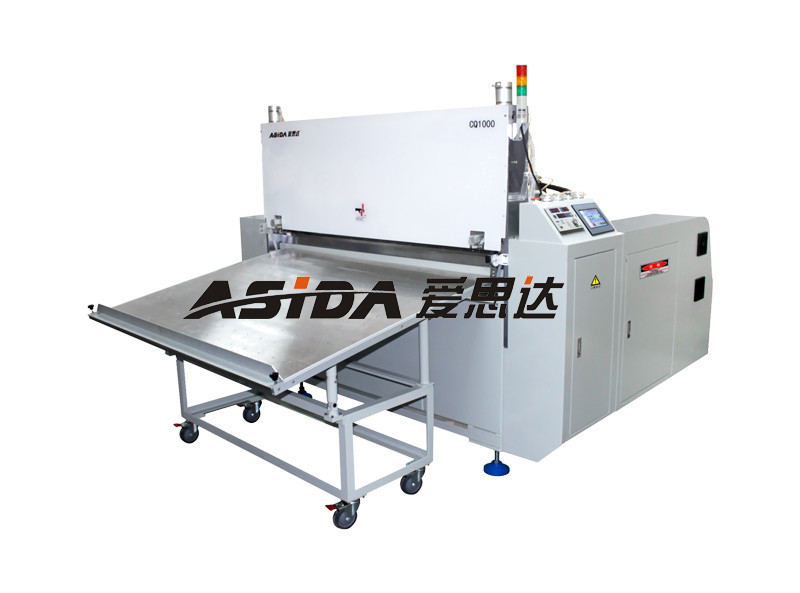

Dust - free Prepreg PP Automatic Cutting Machine With High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | CQ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Cutting Length: | 50 Mm～750 Mm | Cutting Width: | 200 Mm～1270 Mm |
|---|---|---|---|
| Cutting Thickness: | 0.04 Mm～0.3 Mm | Cutting Accuracy: | ±1.0 Mm |
| High Light: | prepreg cutting machine,pp cutter |
||
Product Description
PP cutting machine and Dust-free Prepreg Automatic Cutting Machene
Product Attributes:
|
Product name |
Dust-free Prepreg Cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
CQ1000 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Dust-free Prepreg Cutting Machine USE:
The machine is used for cutting rolled prepreg.to solve the problem of prepreg spreading and large dust
in cutting and after cutting.thus to improve the cutting accuracy and quality.
Dust-free Prepreg Cutting Machine CHARACTERISTIC
1. Fully automatic,with start/pause and three emergency stop buttons on the operating panel. Quick cutting

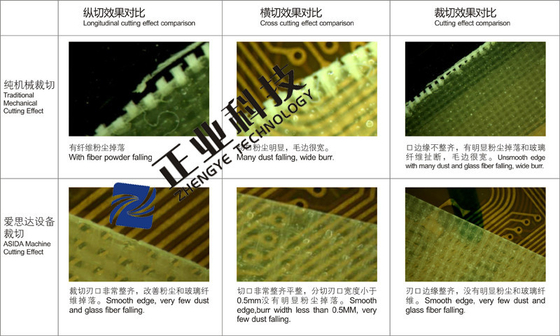

of Prepreg with smooth edges and no dust.
2. Advanced servo control system, high precision cutting, high speed.
3. PLC controls with touch screen, types of Prepreg, cutting speed, cut size and number can all be set from
the computer.
4. After setting the cutting size, cutting number and speed of cutting, can automatically cut prepreg with high
efficiency.
Dust-free Prepreg Cutting Machine Technical parameters
|
ITEM |
SPECIFICATION |
|
Cutting Length |
50 mm～750 mm |
|
Cutting Width |
200 mm～1270 mm |
|
Cutting Thickness |
0.04 mm～0.3 mm |
|
Cutting Accuracy |
±1.0 mm |
|
Cutting Effect |
Smooth edges and no dust. |
|
Speed |
≤60 m/min |
|
Dimensions |
2600mm*2300mm*1700mm(L×W×H) |
|
Weight |
About 1500 kg |
