Edge Trimming Shoe Grinding Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-503 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 20 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
Product Description

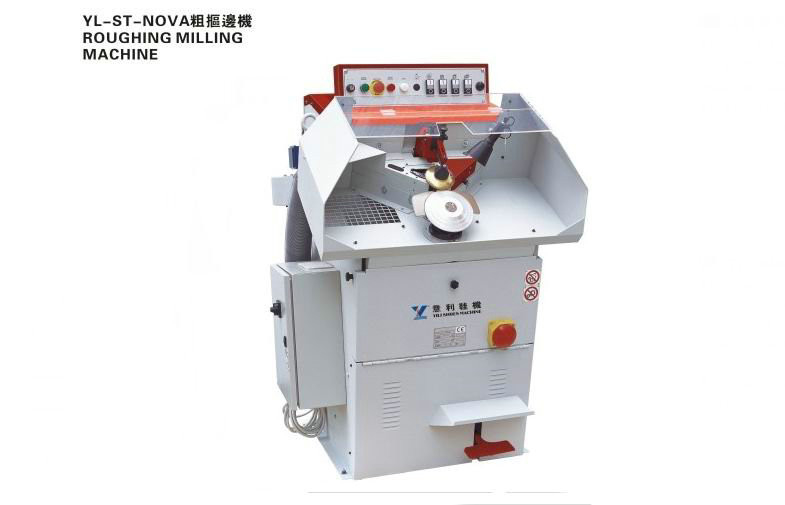

YL-503 Sole Roughing & Milling Machine
Quick Detail:
- Edge Trimming Machine used for all kinds of soles;
- Environmental protection with dust collector;
- Exported Cutter for trimming soles.
- Condition: New
- Voltage: 380V/220V
- Power: 5.25KW
- Cutter Speed: 15000r/min
- Color: Red & white
- Dimensions: 1550 × 1250 × 1550 mm
- Packing size: 1700*1400*1700mm
- N.W: 500 kg
- G.W: 550 kg
- Capability: 1800prs/8hrs
Edge Trimming Shoe Grinding Machine For Sole Roughing / Milling
Description:
This Sole Roughing & Milling Machine is used for trimming outsole edge of stitch down shoes, working shoes, safety shoes and casual shoes etc.
Technical Features:
1. This machine is suitable for rough outsole edge with heel and suitable for all kinds of materials, the rotary guide and the transport wheel with the variable speed, give this machine the possibility to obtain a good milling operation, safe and no need skilled workers.

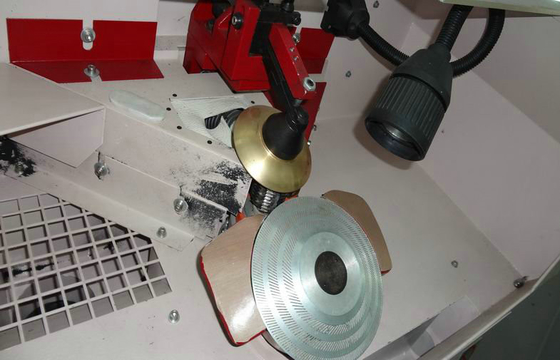

2. The mobile guard, fitted onto the shaft, during the trimming operation, to have the cutter always covered for avoiding accident.
3. This edge trimming machine is equipped with wider cutter, against accident system and dust aspirator. By request, the machine can be equipped with equalizer device to mill special materials.
Specifications:
|
Model No.: |
YL-503 |
|
Product Name: |
Sole Roughing & Milling Machine |
|
Brand Name: |
YiLi |
|
Driven Type: |
Electronic |
|
Function: |
Roughing & Milling |
|
Automatic grade: |
Semi-automatic |
|
Computerized: |
No |
|
Place of Origin: |
Guangdong, China (Mainland) |
|
Cutter Speed: |
15000r/min |
|
Voltage: |
380V/20V |
|
Power: |
5.25KW |
|
Color: |
Red & white |
|
Dimensions: |
1550 × 1250 × 1550 mm |
|
Packing size: |
1700*1400*1700mm |
|
N.W: |
500 kg |
|
G.W: |
550 kg |
|
Capability: |
1800prs/8hrs |
|
Condition: |
New |
|
Guarantee: |
1 Year |
Application:
It is applied to folding and trimming for stitch down shoes, working shoes. Make mid-sole attached with outsole.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
Tag: Sole Roughing & Milling Machine, Edge Trimming Machine, Shoe Roughing Machine, Outsole Edge Trimming Machine, Sole Scouring Machine, Milling Machine for Shoes, Shoe Roughing Machine
