Fiber Laser Marking Machine Laser Cutting Machines for automobile/electric industry
Product Details:
| Place of Origin: | China |
| Brand Name: | WKH |
| Certification: | ISO9001:2000 |
| Model Number: | N/A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong wooden package in accordance with buyer’s requirements |
| Delivery Time: | 30~180 days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 1~30 sets per month |
|
Detail Information |
|||
| High Light: | wire cut edm machine,stainless steel laser cutting machine |
||
|---|---|---|---|
Product Description
Suitable materials:
leather, construction ceramics, acrylic, wooden material, paper, baboon, ABS, PVC, EP, epoxy resin, glass, rubber Automatic Laser marking machine
Description:

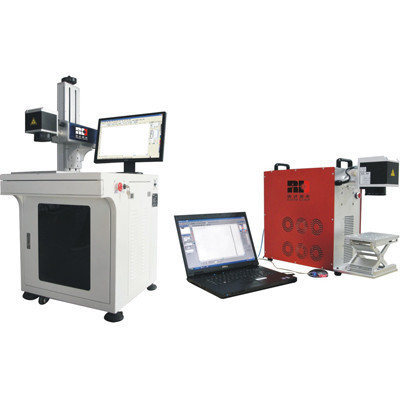

This machine is researched jointly by sino-Germany and England with the international advanced technology. the mixed ytterbium double layers fiber-optical works as the laser medium, pumps by high power multiple laser diode then generates laser. It can output laser by fiber-optical laser generator and control the high speed scanner galvanometer by computer to convert laser path and then realize automatic marking
features
Equipment with imported laser generator and scanning galvanometer, the electro-optical conversion efficiency is high, low power exhausting, processing speed is very fast, low electricity power requirement.
It has smart out shape, high quality beam and the light spot is extremely slim.
This machine is applicable for super precision marking requirements, and the laser generator using period is very long ,the performance is also very steady.
The laser generator has wind cooling systems, doesn’t need consumables or maintaining.
The control soft ware is under windows interface, it can read Coredraw, AutoCAD, Photoshop and so on as output texts, support the formats of PLT,DXF,PCX,BMP and so on as picture documents, use directly SHX,TTF type fonts, support automatically coding the changeable texts, series number, batch number, date, variety of bar codes and two-dimension code, also support reversing marking.
Applications:

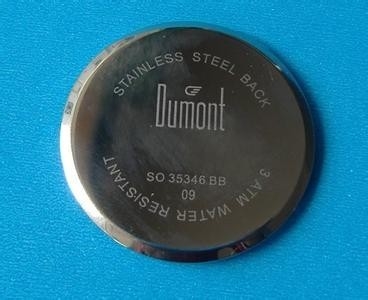

This machine can be used in laptop, cell phone, precision component,watch, telecommunication, automobile accessories ,precision metal production, apparatus, glasses, instruments, art craft and so on.
Specifications:
| Model No. | WK-LMF10 | WK-LMF20 |
| Max. laser output power | 10W | 20W |
| laser wave length | 1064nm | 1064nm |
| light beam quality | ＜2M2 | ＜2M2 |
| laser repetition frequency | 20KHz-100KHz | 20KHz-100KHz |
| marking area | 100mmх100mm/160mmх160mm | 100mmх100mm/160mmх160mm |
| marking depth | 0.4mm | 0.4mm |
| marking liner speed | ≤7000mm/s | ≤7000mm/s |
| marking liner width | 0.01mm | 0.01mm |
| min. character height | 0.15mm | 0.15mm |
| repetition precision | ±0.002mm | ±0.002mm |
| whole set power | 500W | 600W |
| electricity voltage | 220V/single phase/50Hz/60Hz/3A | 220V/single phase/50Hz/60Hz/3.5A |
| Dimension(l*w*h)(mm) | 450x300x600 | 700x800x1110 |
| cooling type | Air | Air |
