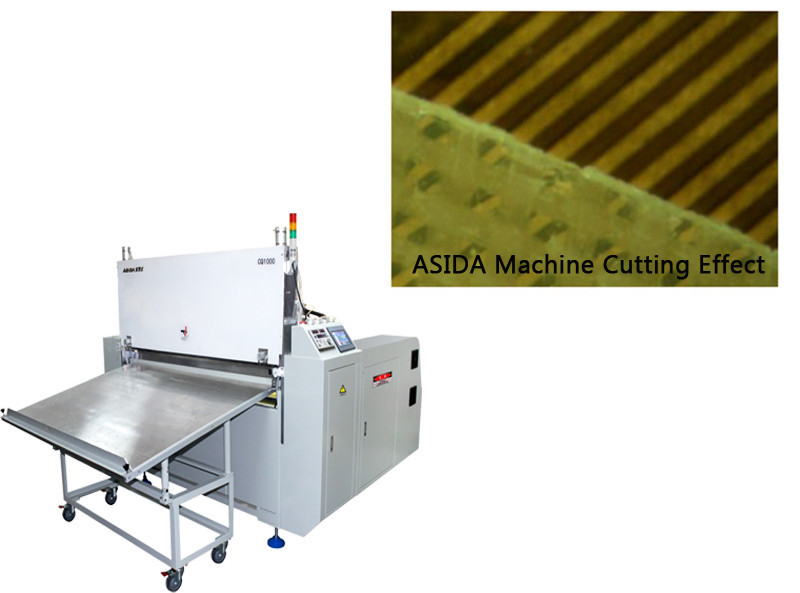

Fully Automatic PP Cutting Machine PLC controlled with touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | CQ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Dust-free Prepreg Cutting Machine | Cutting Accuracy: | ±1mm |
|---|---|---|---|
| Moving Speed: | ≤60m/min | ||
| High Light: | prepreg cutting machine,pp cutter |
||
Product Description
Dust-Free Automatic Prepreg (PP) Cutting Equipment
Product Attributes:
|
Product name |
Dust-free Prepreg Cutting Machine |
|
Brand Name |
ASIDA |
|
Model Number |
CQ1000 |
|
Place of Origin |
China |
|
Packaging Details |
Wooden Carton |
USAGE
Used for cutting various types of prepeg cleanly with no dust or edge charring.
CHARACTERISTIC
1. Fully automatic,with start/pause and three emergency stop buttons on the operating panel. Quick cutting of
Prepreg with smooth edges and no dust.
2. Advanced servo control system, high precision cutting, high speed.
3. PLC controls with touch screen, types of Prepreg, cutting speed, cut size and number can all be set from the
computer.
4. After setting the cutting size, cutting number and speed of cutting, can automatically cut prepreg with high
efficiency.
Technical parameters
|
Cutting accuracy |
±1mm |
|
Quality |

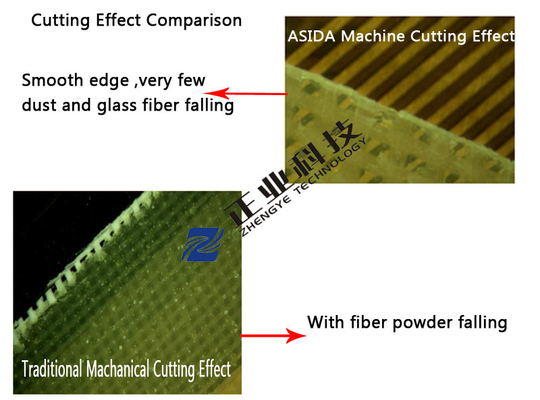

Tidy cutting edge,no white edges&layered&wrinkled and charred carbonation; compared with the traditional purely mechanical cutting, more than 80% dust reduced |
|
Efficiency |
①Cutting frequency(take 500mm length as calculation):≤13times/min |
|
②Moving speed:≤60m/min |
|
|
Objects |
①Cutting length:50～750mm |
|
②Cutting width:200～1270mm |
|
|
③Cutting thickness:0.05～0.3mm |
|
|
Dimensions |
2600*2300*1700mm |
|
Weight |
1500Kg |
