GLASS HORIZONTAL DRILLING MACHINE
Product Details:
| Place of Origin: | China |
| Brand Name: | Saint Best |
| Certification: | CE/ISO etc |
| Model Number: | SBT-ZJ130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case or Customized |
| Delivery Time: | 15-30days |
| Payment Terms: | T/T |
| Supply Ability: | 20Sets/Month |
|
Detail Information |
Product Description

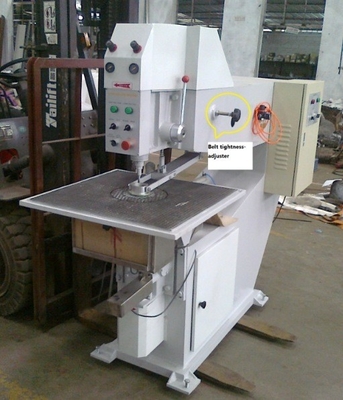

SBT-ZJ130 GLASS HORIZONTAL DRILLING MACHINE
I. General Description
1. Lower drilling bit is controlled by a cylinder while the upper bit is operated by manual.
2. Different sizes of holes can be drilled with different diameters of bits.
3. High working efficiency and easy operation
4. Lamp, ruler, infrared ray and waterproof cover make it more humanized.
II. Technical Parameters
1. Hole Diameter: φ5~φ130 (φ220) mm
2. Glass thickness: 3 ~20 mm
3. Max. Processing size: 2200×2700mm
4. Height of Working Table: 870mm
5. Distance between drilling center and back column: 1300 mm
6. Size: 2200×2500×1700mm
7. Weight: 1200KG
8. Power: 4.95Kw

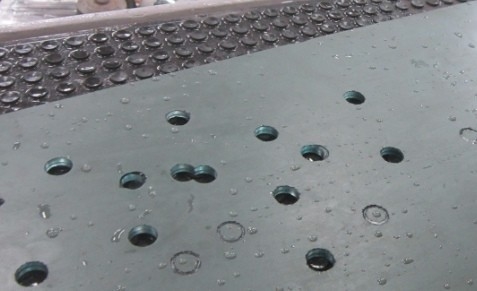

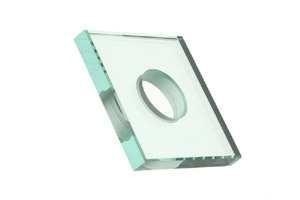

III Glass sample
IV. MAIN ELECTRICAL COMPONENT LIST
|
No |
Name |
Model |
Brand |
Quantity |
Remark |
|
1 |
Air switch |
NM10-100/331 60A |
CHNT |
1 |
CE |
|
2 |
Control transformer |
NDK-250W 380V/24V(220VA), 220V(30VA) |
|
1 |
CE |
|
3 |
AC Contactor |
LC1-D0910B7N AC24V |
SCHNEIDER |
1 |
CE |
|
4 |
AC Contactor |
LC1-D0901B7N AC24V |
SCHNEIDER |
4 |
CE |
|
5 |
Thermal relay |
LRD-07KN 1.6-2.5A |
SCHNEIDER |
1 |
CE |
|
6 |
Thermal relay |
LRD-08KN 2.5-4A |
SCHNEIDER |
2 |
CE |
|
7 |
Short-circuit device |
C32N1PC2A |
SCHNEIDER |
2 |
CE |
|
8 |
Short-circuit device |
C32N1PC6A |
SCHNEIDER |
1 |
CE |
|
9 |
Short-circuit device |
C32N3PC20A |
SCHNEIDER |
1 |
CE |
|
10 |
Short-circuit device |
C32N1PC2A |
SCHNEIDER |
1 |
CE |
|
11 |
Auxiliary contactor |
LADN31C |
SCHNEIDER |
3 |
CE |
|
12 |
Intermediate relay |
MY4NJ AC24V |
OMRON |
3 |
CE |
|
13 |
Operational switch |
LA38-20X3/209B |
|
1 |
CE |
|
14 |
E-stop |
LA38-01MXS/209B RED |
|
1 |
CE |
|
15 |
Limit switch |
CWLD2 |
|
2 |
CE |
|
16 |
Limit switch |
CZ-7121 |
|
1 |
CE |
|
17 |
Cross laser light |
LT-M6501-SFL/+ |
|
1 |
CE |
V. Packing list
|
NO. |
Name & Specification |
QTY. |
Remarks |
|
1 |
Drill-bit φ10 |
1pair |
Carton package |
|
O-Ring 40×2.65 |
1 pc |
||
|
Hoop 16-19, 32 |
2 pcs each |
||
|
Solid wrench S24-27, S30-32 |
1 pc each |
||
|
Hexagon ring spanner S4, S5, S6 |
1 pc each |
||
|
Instruction manual |
1 pc |
||
|
SBT-ZJ130-17 drill socket |
1 pc |
||
|
Certificate of competency |
1 pc |
|
2 |
Machine body |
1 set |
Film package |
|
3 |
Water tank (including φ8 water pipe 4m, φ32 water pipe 7m, φ50 pipe 3.5m,water pump JCB-100(250W), with joint and hole G3/8’’ ) |
1 set |
Film package |
|
4 |
Float working table |
1 pc |
Film package |
|
5 |
Supporting frame of working table |
2 pcs |
Film package |
|
6 |
Connecting bar of supporting frame |
3 pcs |
Film package |
|
7 |
Float staff gauge |
3 pcs |
Film package |
VI. Others
1. Delivery time: 20 Days (If the power condition is not 380v, 50hz, it will be longer)
2. There is CE certificate for this product and guarantee is 14 months from delivery or 12 months from installation.
3. Installation term: The seller will be responsible for the installation of the machines if the buyer required. The installation charge is 100usd/person/day. And the buyer should be responsible for round-trip air ticket, local transportation, lodging and meal for our engineers.
4. Payment term:T/T
