High Density Graphics CVL / FPC / RF UV Laser Cutting Machines With Little Carbonization
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Certification: | CE |
| Model Number: | JG18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set/sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Positioning Accuracy: | ±3μm | Repeat Accuracy: | ±1μm |
|---|---|---|---|
| Cutting Thickness: | ≦1.0mm | ||
| High Light: | small laser cutting machine,Automatic Laser Cutting Machine |
||
Product Description

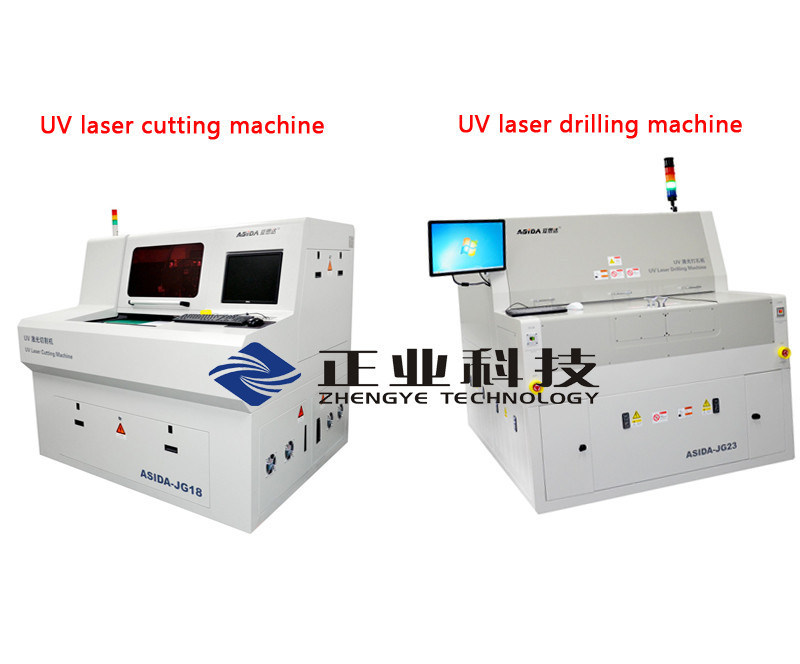

High Density Graphics ( CVL / FPC / RF ) UV Laser Cutting Machines
Product Attributes:
|
Product name |
UV Laser Cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG18 |
|
Certification: |
CE |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Cutting Machine USE:
The machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin
multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.
UV Laser Cutting Machine Features:
1, Precision:Adopting linear motor module,Servo control,sizing compensation,optical positioning and
secondary positioning technologies.
2, High quality: little carbonization; high density graphics cutting.
3, Highly intelligent,efficient: With multi-panels cutting,auto-positioning,auto-correcting,automatic sizing compensation and exclusive cutting previews functions.

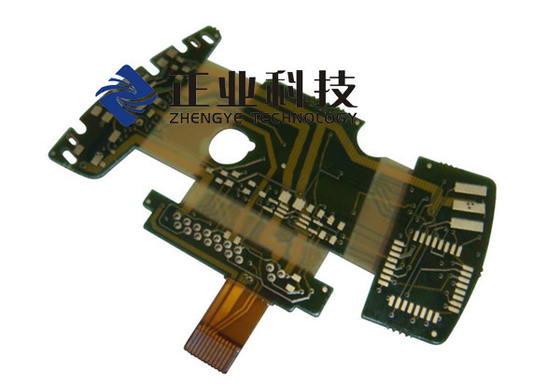

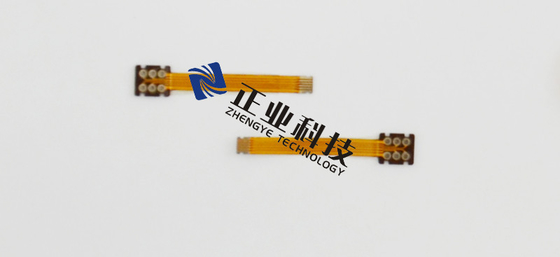

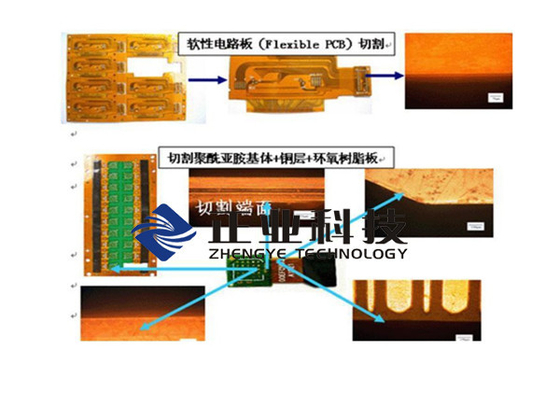

Cutting Examples:
UV Laser Cutting Machine Client:
|
Accuracy |
①System processing accuracy:±20μm (ZHENGYE conditions) |
|
②Positioning accuracy:±3μm |
|
|
③Repeat accuracy:±1μm |
|
|
Cutting speed |
≥150mm/s(ZHENGYE conditions) |
|
Objects |
①Cutting thickness:≦1.0mm |
|
②Maximum processing size:610X460mm or 610×500mm(Optional) |
|
|
Dimensions |
1800*1600*1700mm |
|
Weight |
2500Kg |
The Undertaking Services:
The warranty of our company's equipment is 12 months. During the warranty period,
we will be responsible for the repair of re-placement the damaged or broken-down
equipment free, except that the malfunction is caused by the customer' fault.
