Hole automatic drilling machine for Flexible Circuit / Fpc Laser drill machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Certification: | CE |
| Model Number: | JG23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2Weeks |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Laser: | UV | Controlling Mode: | CNC |
|---|---|---|---|
| Automatic Hole Drilling For Flexible Circuit ( Fpc Laser Drilling Machine ): | ±25 | Precision: | High Precision |
| High Light: | laser drilling equipment,pcb drilling machine |
||
Product Description

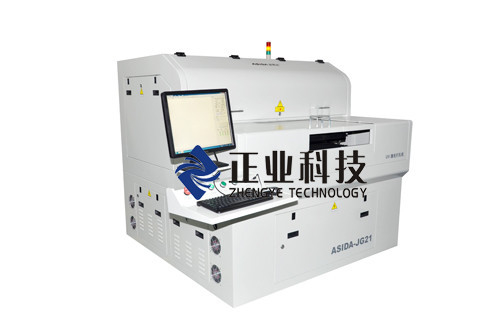

Hole automatic drilling machine for Flexible Circuit / Fpc Laser drill machine
Usage of UV Laser Drilling Machine
The machine is used to drill via-hole,blind hoes of FPC,cutting the CVL/FPC/RF.
Features of Laser Drilling Machine
1.High speed: Adopting the most advanced IFOV dynamic processing technology,to realize the galvanometer and platform motion processing at the same time which greatly improve the equipment processing capacity;
2.High quality:Adopting the advanced laser,high-performance galvanometer, faster pulse frequency,higher peak light rate, more fine cutting path planning;
3.Smart: 3 CCD visual system with high and low times lens, more intelligent
4.Customized: customizable 250 mm or 500 mm wide RTR automatic loading system and various kinds of software functions
5.Safety: professional security module control system, equipment and personnel security more secure
6.stable: a new design concept, each procedure, strives for perfection,
Specification fo UV Laser Drilling Machine
Project |
Specifications |
Model |
ASIDA-JG23 |
System processing accuracy |
±25μm(ZHENGYE conditions) |
Drilling speed |
200 holes per one second |
Objects |
Maximum processing size:560X650mm |
Minimum processing hole diameter:50μm |
|
Drilling through-holes,blind hoes |
|
Machine size |
1600mm×1733mm×1940mm |
Weight |
2300Kg |
