Hydraulic Manual Shoemaking Heel Nailing Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-3001M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 25 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 150 sets per month |
|
Detail Information |
Product Description

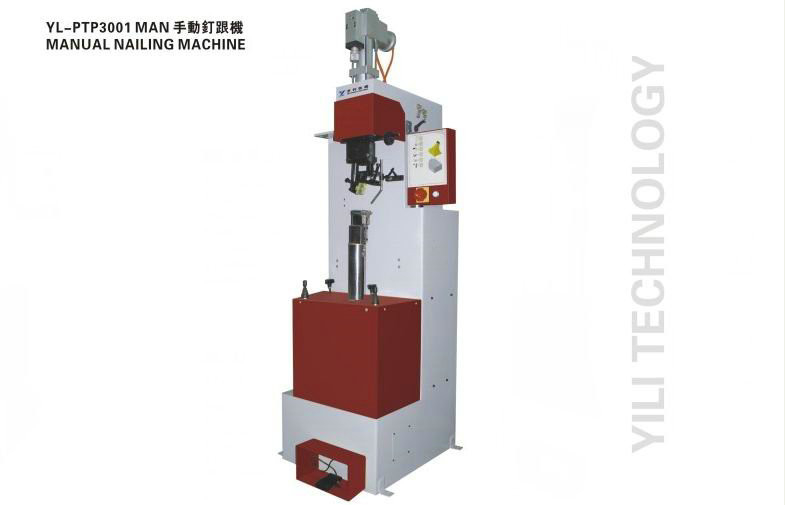

YL-3001M Manual Heel Nailing Machine
Quick Detail:
- Product name: Manual Heel Nailing Machine
- Automatic Grade: Manual
- Function: High heel nailing
- Machine type: Manual Heel Nailing Machine
- Condition: New
- Color: Red & White
- Air pressure: 0.6MPa
Hydraulic Manual Shoemaking Heel Nailing Machine 380V / 220V , 0.3KW
Description:
The Manual Heel Nailing Machine is in very good technical stand, but working for a low efficiency by manually putting nails. This machine is good choice for shoes sample room or high quality shoes production line, and it is very popular in South America.
Technical Features:
1. 7 nails plus 8 screws, also can design to be 5 nails plus 6 screws;
2. Movable nailing column for boots;
3. 5 small cylinders plus 1 big cylinder for nailing on very hard materials;
4. Low noise, suitable for small orders;
5. Automatic checking, clear up error quickly;
6. Choose working direction according to different needs;
7. Manual nailing putting, without nailing feeder, nailing in order, no nailing program.
Specifications:
|
Model No.: |
YL-3001M |
|
Product name: |
Manual Heel Nailing Machine |
|
Brand name: |
YiLi |
|
Certification: |
CE |
|
Nails height: |
6~28mm |
|
Driven type: |
Hydraulic |
|
Pressure type: |
Air cylinder |
|
Automatic Grade: |
Manual |
|
Voltage: |
380V or 220V |
|
Color: |
Red & white |
|
N.W: |
480 kg |
|
Air Pressure: |
6bar |
|
Power: |
0.3KW |
|
Measurement: |
860 × 1200 × 2100 mm |
|
Capability: |
800prs/8hrs |
|
Condition: |
New |
|
Warranty Period: |
One year |
Application:
Suitable for clenching heel pieces of different kinds of men’s and women’s boots or shoes.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
Tag: Manual Heel Nailing Machine, Semi-Automatic Heel Nailing Machine, Automatic Heel Nailing Machine, Italian Heel Nailing Machine, Heel Nailing Machine.
