Laboratory Test Equipment Metallographic Microscope 10× magnification
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | JX22/JX23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set /sets |
|---|---|
| Price: | negotiation |
| Packaging Details: | China Packaging Details: Wooden Carton |
| Delivery Time: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | negotiation |
|
Detail Information |
|||
| Product Name: | Metallographic Microscope | CCD Camera: | Megapixel |
|---|---|---|---|
| Eye Lens(wide View): | 10× | Main Body: | Upright |
| High Light: | lab testing equipment,Lab Testing machine |
||
Product Description

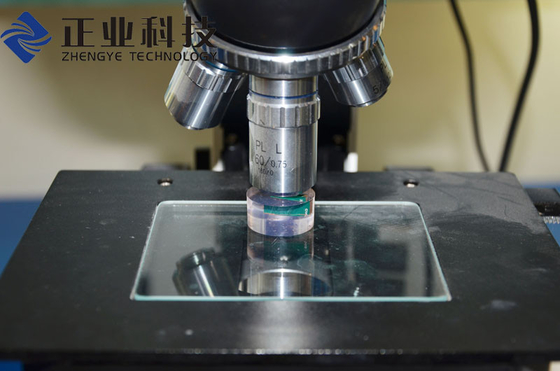

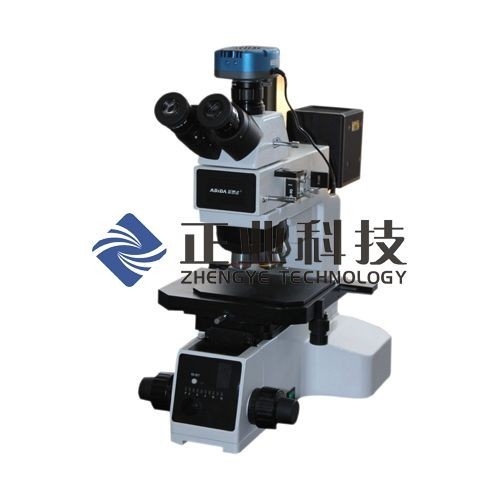

Metallographic Microscope JX22/JX23
Product Attributes:
|
Product name: |
Metallographic Microscope |
|
Brand Name: |
ASIDA |
|
Model Number: |
JX22/JX23 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Metallographic Microscope JX22/JX23 Use:
ASIDA metallographic microscope is used in measurement and analysis of tiny-size objects like IC components and microsections.
Metallographic Microscope JX22/JX23 Features:
The software is initiatively developed, so we can customize its function.
2. Optimize optical path to ensure best imaging effects.
3. The software is easy to use. It’s easy to achieve accurate measurement and analysis about point-to-point,line-to-line, arc, radius, diameter, angle and other related dimensions.
Metallographic Microscope JX22/JX23 Parameters:
|
ITEM |
JX22 |
JX23 |
|
Main body |
Upright |
Upright |
|
Optional magnification |
50×～600× |
50×～500× |
|
Electronic magnification |
90×～1150× |
90×～900× |
|
Eye lens(wide view) |
10× |
10× |
|
Field lens(achromatic) |
5×,10×, 40×,60× |
5×,10×, 20×,50× |
|
Lighting system |
Drop lighting 6V30W, adjustable halogen brightness with effect from polarizer |
Drop lighting 12V100W, adjustable halogen brightness with effect from polarizer |
|
CCD model |
WD-300C |
WD-300C2/TCC-2.0CL |
|
CCD camera |
megapixel |
megapixel |
|
Accuracy |
±0.0006mm |
±0.0006mm |
