Large PP Cutting Machine / Machinery / Equipment With Automatic Edge Sealing
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | CQ1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Dust-free Prepreg Cutting Machine | Moving Speed: | ≤60m/min |
|---|---|---|---|
| Cutting Thickness: | 0.05～0.3mm | ||
| High Light: | prepreg cutting machine,pp cutter |
||
Product Description

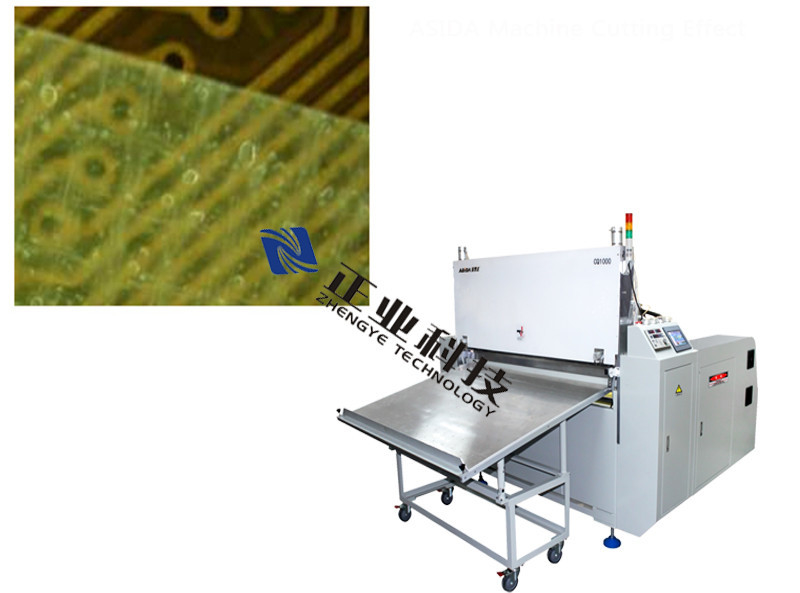

Dust-Free Automatic Prepreg Cutting Machine / Prepreg Automatic Cutting Machine
Product Attributes:
|
Product name |
Dust-free Prepreg Cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
CQ1000 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Dust-free Prepreg Cutting Machine USE:
The machine is used for cutting rolled prepreg.to solve the problem of prepreg spreading and large dust in
cutting and after cutting.thus to improve the cutting accuracy and quality.
Dust-free Prepreg Cutting Machine Features:
1, Precise: Adopting high-precision drive mechanism and servo control system.
2, High quality:Tidy cutting edge,automatic edge sealing ,no wiredrawing and no obvious dust.
3, Efficient:
① PP after cutting can be used directly with no edge sealing and vacuuming;
② PP can stack automatically;
③ Parameters can be packed up and brought up directly.
Dust-free Prepreg Cutting Machine Client:
|
Cutting accuracy |
±1mm |
|
Quality |

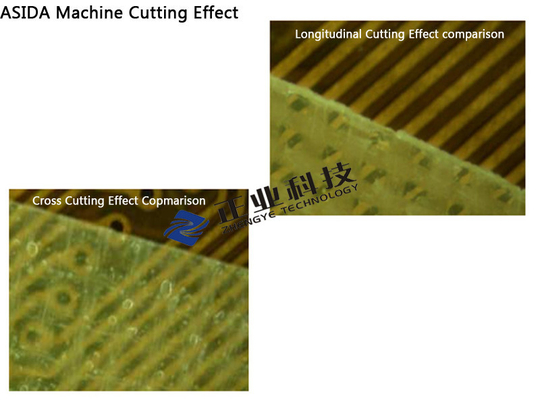

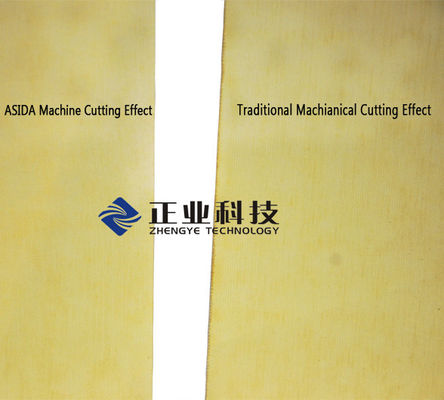

Tidy cutting edge,no white edges&layered&wrinkled and charred carbonation; compared with the traditional purely mechanical cutting, more than 80% dust reduced |
|
Efficiency |
① Cutting frequency(take 500mm length as calculation):≤13times/min |
|
② Moving speed:≤60m/min |
|
|
Objects |
① Cutting length:50～750mm |
|
② Cutting width:200～1270mm |
|
|
③ Cutting thickness:0.05～0.3mm |
|
|
Dimensions |
2600*2300*1700mm |
|
Weight |
1500Kg |
