Layer-built Battery Online X-ray Inspection Machine , 6 Pices Per Minute
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | XG5200D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Supply Ability: | 120 sets per year |
|
Detail Information |
|||
| Application: | Lithium-ion Battery Industry | Series: | X Ray Testing Machines |
|---|---|---|---|
| Testing Capacity: | 6 Pices Per Minute | ||
| High Light: | x ray inspection equipment,battery testing machine |
||
Product Description

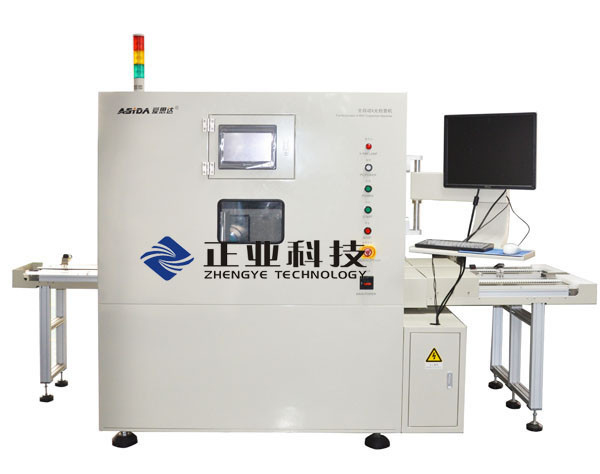

Layer-built Battery Online X-ray Inspection Equipment / X-ray Inspection Equipment for Battery Testing
Brand : ASIDA
Model : XG5200D
Application : layer-built battery
Online X-ray Inspection Equipment Usage
The X ray is emitted by a generator,penetrates through the battery. It is received and taken pictures by
imaging system. Software automatic sort qualified /NG product by processing and measurement the pictures.
Product features
Characteristic
1. Automatic sorting
Automatic detection and sorting OK/NG products.
2.Real-time monitoring
Real-time monitoring the state of all actions, signal, hardware. And show on the software interface.

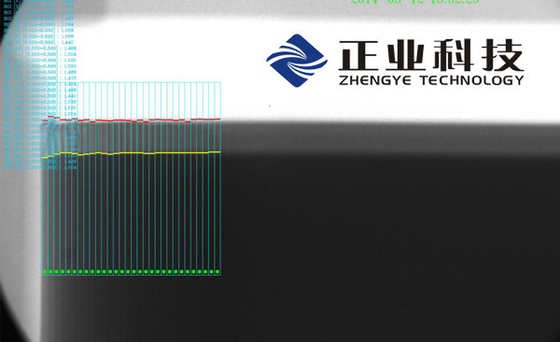

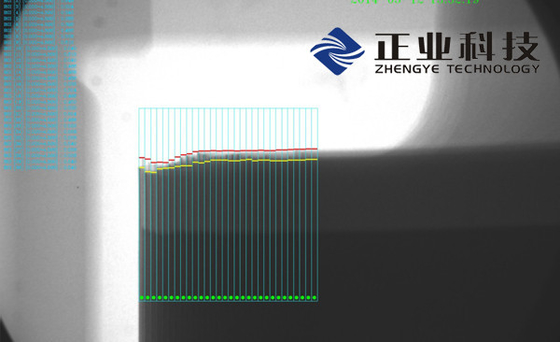

3. Images and data real-time online display.
Test data and images of many parts of the same battery is shown in the same software interface,
convenient observation recognition.
4. Safety protection
The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards.
Specifacation
|
X-ray Tube |
Tube Voltage |
MAX 110KV |
|
Tube Current |
MAX 450uA |
|
|
Focal Spot Size |
5μm |
|
|
Cooling Mode |
Strong wind cooling |
|
|
Image-forming System |
Field of View Range |
4"/6" |
|
Resolution |
80lp/cm |
|
|
Camera Resolution |
752*480pixels |
|
|
Detection Precision |
Repeat accuracy |
60μm |
|
Efficiency |
Detection Efficiency |
≥6ppm |
|
False Rate |
≤2% |
|
|
Missing Rate |
0.0% |
|
|
Excellent Products Rate |
≥99.5% |
|
|
Safety Standard |
International Radiation Safety Standards |
≤1usv/hr |
