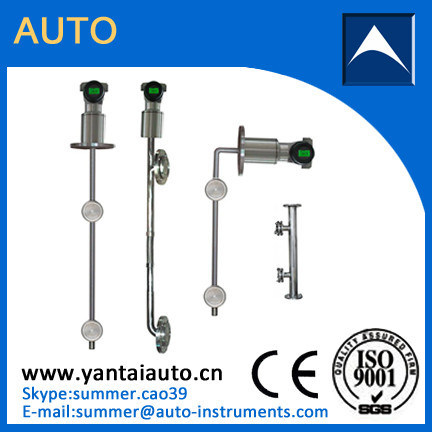

Lubricating oil and fuel testing equipment density meter
Product Details:
| Certification: | CE And ISO9001 |
| Model Number: | MD3051 |
| Power supply: | 24V DC |
|---|---|
| Measure range: | 0-1g.cm3,0-2g/cm3,0-3g/cm3 |
| temperature: | 0-100C |
| Output signal: | 4-20mA,LCD Display |
| Skype: | summer.cao39 |
| Commnuiaction protocol: | Hart |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD1000/pc |
| Packaging Details: | Wooden carton |
| Delivery Time: | 3-7days after confirm order |
| Payment Terms: | T/T |
| Supply Ability: | 1500 unit per month |
|
Detail Information |
Product Description
Lubricating oil and fuel testing equipment density meter
summary
Online density meter can be used for online density measurement of various liquid and liquid mixture. It is widely applied to the petrochemical industry, food industry, dairy industry, paper industry, chemical industry, biopharmaceutical industry and other production sites.
Features
- Accury:±0.001g/cm3
- Provide accurate temperature compensation
- Suitable for mobile or stationary liquid
- Two wire of power supply
- Several different contact materials
- A single device, no moving parts
- The factory calibration
- Field recalibratio
- No standard reference source
- Without calibration laboratory
- No process interruption
- Application to pipeline and tank
- Simplify the maintenance, not need regular cleaning
- ndustrial and sanitary type process connections
- Remote diagnosis
- Hart protocol
Technical Parameters
|
Current Output |
4 ~ 20mA |
|
Digital Signal |
HART protocol |
|
Power Supply |
16 ~ 30V DC (24V DC is recommended) |
|
Density Range |
0 to 2g/cm3,0 to 3g/cm3 |
|
Accuracy |
0.001g/cm3 |
|
Resolution |
0.0005g/cm3 |
|
Temperature Range |
0 ~ 100 ℃ |
|
Temperature Accuracy |
0.2 ℃ |
|
Ambient Temperature |
-10 ~ 60 ℃ |
|
Humidity Range |
0 ~ 90% |
Order sheet
|
Name |
Specification code |
Explanation |
|
Range |
05 |
0.5-2g/cm3 min:0-0.005g/cm3 |
|
10 |
1-2.5g/cm3 min:0-0.005g/cm3 |
|
|
20 |
2-5g/cm3 min:0-0.005g/cm3 |
|
|
Wetted parts material |
B |
316L stainless steel |
|
H |
Hartz alloy |
|
|
T |
Tantalum |
|
|
Installation method |
Z |
Top mounted |
|
C |
Side mounted |
|
|
Y |
Other -specify |
|
|
Length of the probe |
1 |
500mm |
|
2 |
Other -specify |
|
|
Process connection |
H8 |
DN50 |
|
H10 |
DN80 |
|
|
H12 |
DN100 |
|
|
H14 |
DN125 |
|
|
Filling liquid |
1 |
Silicone oil |
|
2 |
Glycerol and water |
|
|
3 |
Other -specify |
|
|
Electrical interface |
A |
1/2-14NPT |
|
B |
M20*1.5 |
|
|
Output |
0 |
4~20mA output(HART) |
|
Tank adapter |
Y |
Yes |
|
N |
No |
Remarks
When ordering, please specify the length of body, sensor
spacing, the medium, the range and the site conditions,
Installation
Sampling device
