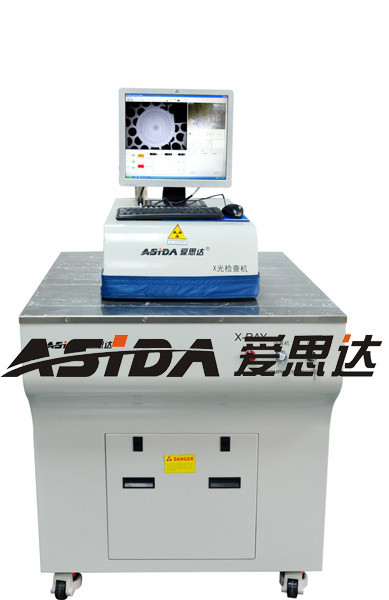

Multi-Layer PCB Testing Equipment for X-ray Inspection Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | XG3300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 2WEEKS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| X-ray Image Intensifier: | 6-inch View | Navigation CCD Resolution: | 5Million Pixels |
|---|---|---|---|
| Maximum Thickness: | 12mm | Product Name: | X-ray Inspection Machine For Multi-Layer PCB |
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description
Multi-Layer PCB Testing Equipment for X-ray Inspection Machine
USAGE

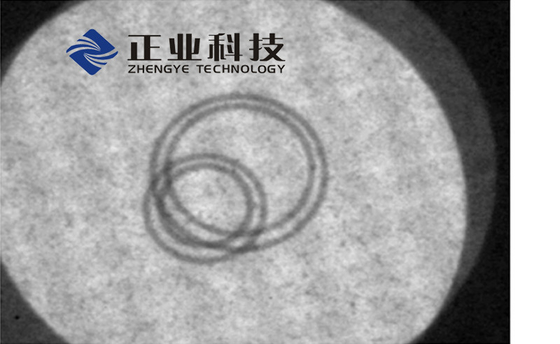

Observe and measure positioning holes on the PCB, to check whether the holes
Between layers are deviated, a variety of conditional measurement can be
Conducted on the images, including the distance from the center of a circle to
Another, from one point to another, circle area, etc., and make judgement pre-set
Parameters.
CHARACTERISTIC
1. Using the principle of X-ray projection & imaging to observe and measure the
Positioning holes on the PCB.
2. CAN network computer control system, simple operation.
3. Eqiupped woth CCD navigation functions, to facilitate moblie test, and quickly
Search the test objectives.
4. Sealed micro focus X-ray tube and a variety of image processing techniques
And software to reduce the image distortion.
5. Image can be measured under different conditions, such as the distance from
The center of concentric circles, point to point distance, circle area, etc.
Parameters
| item | Specification | |
| Model | XG3000 | |
| X-CCD resolution | 752×582pixel | |
| X-ray tube parameters | Maximum Voltage | 50KV |
| Maximum current | 1mA | |
| Maximum power | 50W | |
| Preheating time | 6min | |
| X-ray image intensifier | 6-inch view | |
| Navigation CCD resolution | 5Million pixels | |
| PCB size | Width 45 "(throat depth 630mm) | |
| Maximum thickness | 12mm | |
| X-ray shield target | No more than 0.5µSv/h | |
| Cooling mode | Strong wind cooling | |
| Temperature and humidity |
Temperature: 22 ºC ± 3 ºC Humidity: 50% ± 10% | |
| Printer | Printer | |
| Operating mode | 1. manually move the tested PCB, navigation CCD tracking 2.setting X-ray open when sending PCB boards, and close when taking |
|
| Power requirements | AC220v 50Hz, without water and gas |
|
| Dimensions | 1040mm X 855mm X 1510mm (LxWxH including monitor) |
|
| Weight | 130Kg |
|
