NIR Slipper Making Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-4208 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 25 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
Product Description

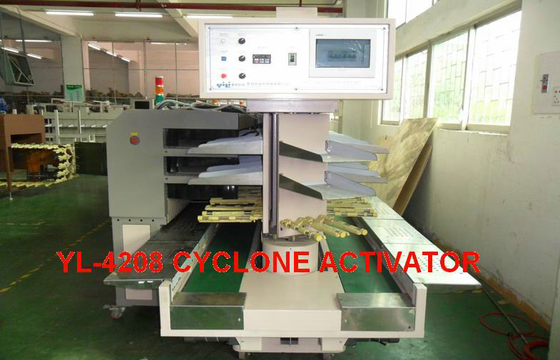

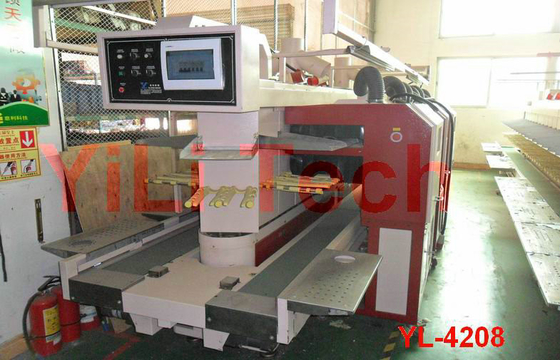

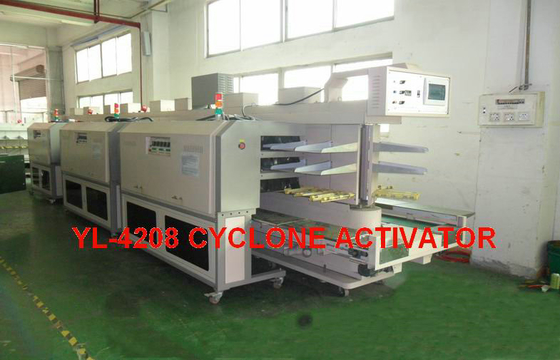

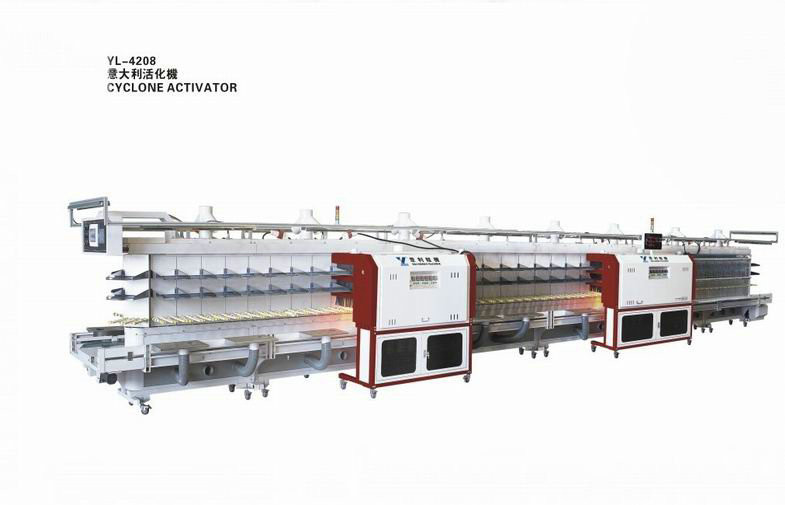

YL-4208 Rotary Infrared Activation Shoe Conveyor
Quick Detail:
- Product name: Rotary Infrared Activation Shoe Conveyor
- Type: Assembling line
- Condition: new
- Application: Footwear
- Automatic Grade: Automatic
- Driven Type: Electric
- Control: PLC
- Material: Stainless steel
NIR Slipper Making Machine / Rotary Infrared Automatic Shoe Conveyor
Description:

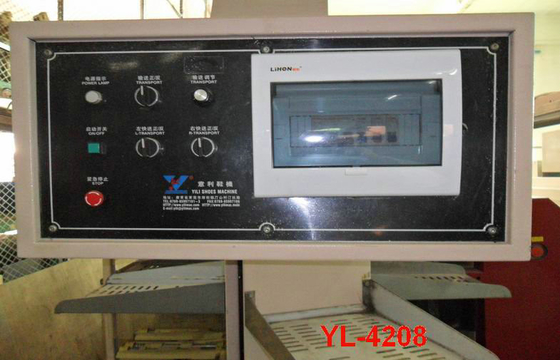

YL-4208 Rotary Infrared Activation Shoe Conveyor is also called CYCLONE ACTIVATOR, normally, it with 16~76 pallets by dry and activate through NIR hot air, good for drying for upper and outsole. Every revolving pallet: One pair of uppers can be put in bottom pallet, the corresponding soles can be put on top pallet. This activator is equipped with digital electric controller to control the time on drying and activating. 16~76 revolving stations get a circle, work with revolving time. Every station has 6~12 pallets. For this kind of activator have several cyclones from 16 cyclone, 22 cyclone, 30 cyclone, 34 cyclone, 42 cyclone, 54 cyclone, 76 cyclone etc. And the optional fitting part is NIR heating Lamps.
Technical Features:
1. Completely new design with humanization, excellent operation interface;
2. High efficiency NIR infrared heat radiation for heating and drying process;

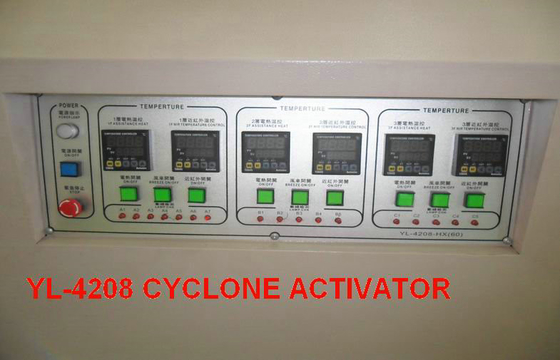

3. PLC controls temperature and capacity correctly;
4. Separately controller for three layers;
5. Movable oven, fast adjustment if shoes making process is changed;
6. Integrated sole attaching and assembly;
7. Strong air draft fit for environment request;
8. Design different standard based on customers` capacity;
9. Excellent manufacturability, flexible and easy operation.
Specifications:
|
Model No.: |
YL-4208 |
|
Product name: |
CYCLONE ACTIVATOR |
|
Brand name: |
YiLi |
|
Type: |
Assembling line |
|
Voltage: |
380V/220V |
|
Power: |
20~63KW |
|
Type: |
Shoes assembling line |
|
Materials: |
Stainless steel/iron |
|
Computerized: |
No |
|
Control: |
PLC |
|
Automatic grade: |
Automatic |
|
Driven Type: |
Electric |
|
Color: |
YiLi Standard Color (Red/white) |
|
Height: |
1970mm |
|
Width: |
1980mm |
|
Length: |
7M |
|
Weight: |
900~2800kgs |
|
Capability: |
400~1800prs/8hrs |
|
Condition: |
New |
|
Guarantee: |
One Year |
Application:
This conveyor applies to shoes assembling for any kinds of shoes, including sports shoes, lady shoes, children shoes, leather shoes, working shoes and so on, it saves space 50% than normal production line.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best After-sales service with professional Technicians
7. Reasonable Price
