Nonwoven Laboratory Testing Equipment, Nonwoven Fabric Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guoliang Instrument |
| Certification: | ISO certification |
| Model Number: | YG461E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export plywood case |
| Delivery Time: | 5 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, negotiation |
| Supply Ability: | 100 sets |
|
Detail Information |
Product Description

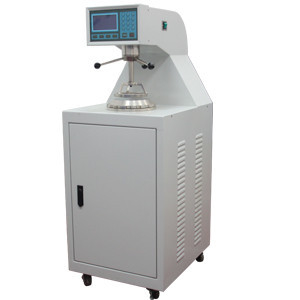

Nonwoven Laboratory Testing Equipment, Nonwoven Fabric Testing Machine
1. Applications:
This textile fabric air permeability testing machine can be compared to Textest air permeability tester and AKUSTRON air permeability tester, high precision to test, meet to ISO quality control system and CE requirement. It is used to detect air permeability property of textiles, non-woven, industrial filter cloth (paper), microporous membrane, polyester mesh, non-woven fabrics, coated fabrics and other breathable leather, plastics and other chemical products.
2. Standards:
ISO 9237 Textiles -- Determination of the permeability of fabrics to air.
ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics.
ISO 5636-5 specifies the Gurley method of determining the air permeability of paper and board.
BS 5636, DIN 53887, EN ISO 9237, WSP 70.1, ASTM D 3574, EN ISO 7231, JIS L 1096-A, TAPPI T 251, WSP 70.1
3. Features
1. Full test scale, automatic detection permeability tests of various specimens.
2. Mirco-computer automatic control, fast test within 60s.
3. Program supported languages: English LCD display and English software.
4. Data port: RS232 printout interface and computer controlled interface.
5. Adopt imported pressure sensor, to ensure accuracy of the data collected.
6. Units of measure: mm/s, L/㎡/s, ft3/ft2/min, cm3/cm2/s, m3/m2/min, m3/m2/h, Pa (pressure drop).
7. Computer control software, real-time display test curve and statistical analysis data, c alculate maximum, minimum, average and CV value.
7. Can be locked using universal pulley, easy to move.
8. Use a retractable working bench, to facilitate the work, does not occupy space.
4. Technical parameters:
|
Item |
Fabric Air Permeability Testing Machine |
|
Model |
YG461E |
|
Display mode |
English Large touch screen operation |
|
Air permeability range |
0.2 - 9999mm / s |
|
Test accuracy |
better than ± 2% of displayed value |
|
Test pressure |
0-4000Pa |
|
Test Area / test head |
5 cm2, 20 cm2, 38cm2, 50 cm2 and 100 cm2 |
|
Nozzle number |
11 pieces |
|
Diameter of nozzle |
￠0.8 ￠1.2 ￠2 ￠3 ￠4 ￠6 ￠8 ￠10 ￠12 ￠16 ￠20 |
|
Power |
AC220V ± 10% 50Hz/60Hz |
|
Dimensions |
820×600×1300mm(L×W×H) |
|
Weight |
About 85Kg |
