ntelligent multi-frequency eddy current tester/testing equipment

Product Description

1.Instrument Introduction

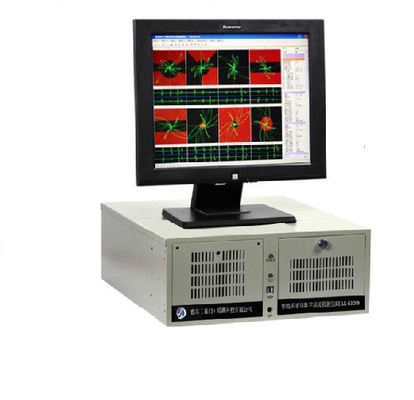

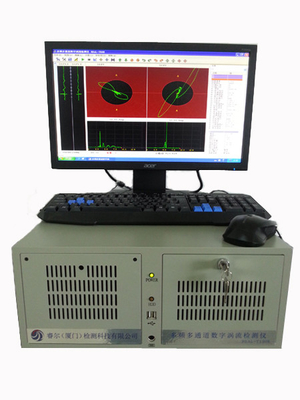

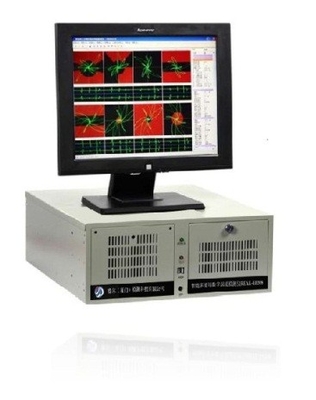

RealMET0X series with WINDOWS operating platform makes the instrument easier to use intelligence. Instrument stable performance, reliable, automated, test speed, dedicated to highspeed detection of metal tubes, rods, wire-line testing of eddy current testing equipment.

RealMET0X series of relatively independent detection channels, which can drive two different forms of detection probe (probe consists of modular absolute and differential coils, etc.), two detection channels for simultaneous data collection, for the detection of metal pipe, longitudinal and transverse cracks appearing in rod production defects. For pipe-line, off-line testing, the instrument of metal tubes, rods, wire crack, crevice, porosity, inclusions and opening cracks and other defects with high sensitivity. Production process, due to welding failure caused by slow product becomes injury, long road injuries can be detected reliably

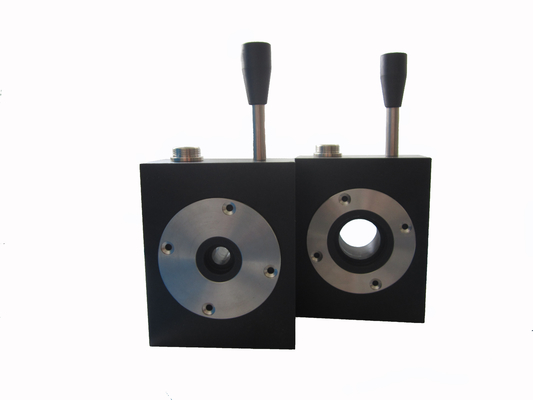

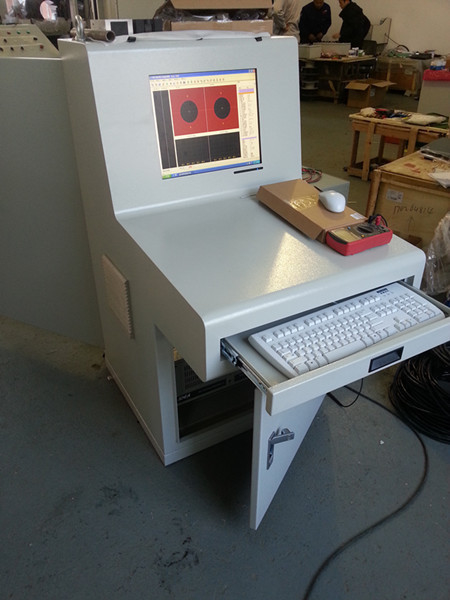

RealMET0X series of multifrequency eddy current multichannel digital detector with 50 Hz ~ 10 MHz test frequency range, can adapt to a variety of metal pipe testing requirements, and thanks to all-digital design, multiple criteria can be established in the instrument detected file, user-friendly call at the change product specifications. DSP / FPGA using highspeed data processing circuit, ensure that the instrument's high sampling rate and low noise, prevent missed or misreported. Optional precision instrument delay marking electronic module, as well as magnetic saturation is marking machine, the probe holder, in order to achieve a metal pipe eddy current online automatic flaw detection.It can be coupled with low clearance requirements through sensors or wears outside sensor, fan sensor.

2.The main application areas

Aerospace, nuclear power, defense, automotive, highspeed railway, metallurgy, electric power, oil and gas industies, cracks are detected surface and near surface, porosity, inclusions, different heat treatment, different hardness and other defects.

Metallurgy, machinery: stainless steel tube, rod, wire; oil pipe; nonferrous metal pipe, rod, wire; alloy steel, carbon steel; seamless steel tubes; metal plate; surface of the metal pipe, sheet metal, etc., and near surface defects.

Petroleum, petrochemical, nuclear power, shipbuilding: sucker rod, oil stick, oil pipes, drill collar, etc.

Universities, research institutes：Education、Laboratory and research, etc.

Applicable to all testing standards：GB/T 7735—2004 ASTM-E 243—97 GB/T 11260—96 API-5 etc.
