Optical Zinc Selenide Lens ZnSe Windows / Focus Lens for Laser Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GIAI |
| Certification: | ROHS / SGS |
| Model Number: | GA-ZS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | vacuum packaging |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 3000pcs per month |
|
Detail Information |
|||
| Product Name: | Zinc Selenide Lens | Surface Quality: | 60 - 40 |
|---|---|---|---|
| Density (g/cm3): | 5.27 | Diameter Tolerance (mm): | +0.0/-0.1 |
| Size: | Customization | Substrate: | CVD Laser Grade ZnSe |
| High Light: | double convex lens,znse lens |
||
Product Description

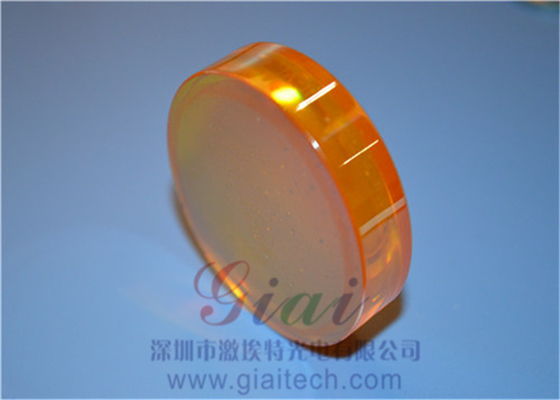

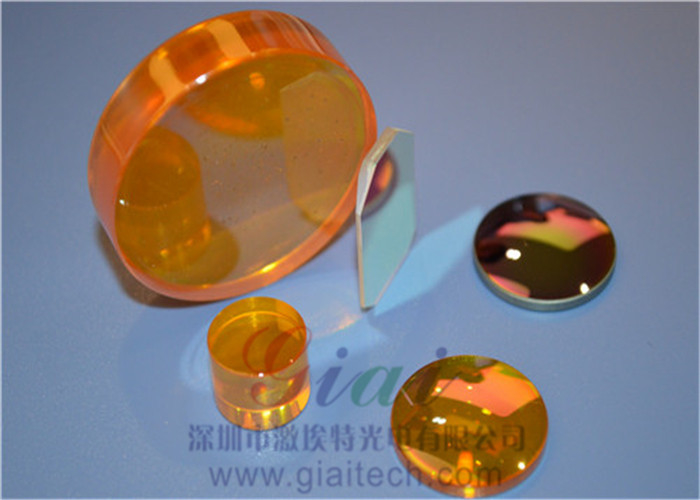

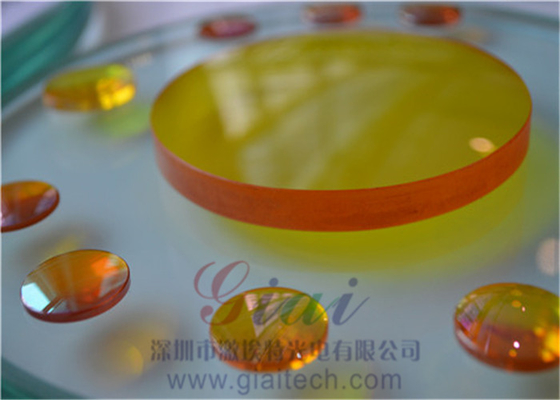

Optical Zinc Selenide Lens ZnSe Windows / Focus Lens for Laser Cutting Machine
Zinc Selenide (ZnSe) Windows
Specifications:
|
Diameter (mm) |
10.0 |
|
Diameter Tolerance (mm) |
+0.0/-0.1 |
|
Clear Aperture (%) |
90 |
|
Thickness (mm) |
1.5-10 |
|
Thickness Tolerance (mm) |
±0.1 |
|
Surface Accuracy |
1/10 @ 10.6μm |
|
Surface Quality |
60 - 40 |
|
Parallelism (arcminutes) |
<1 |
|
Density (g/cm3) |
5.27 |
|
Knoop Hardness (kg/mm2) |
120 |
|
Substrate |
CVD Laser Grade ZnSe |
|
Coating |
Uncoated |
|
Type |
Protective Window |
|
Wavelength Range (μm) |
0.6 - 18.0 |
|
RoHS |
Compliant |
Description:
TECHSPEC Zinc Selenide (ZnSe) Windows are ideal for a wide variety of infrared applications including thermal imaging, FLIR, and medical systems. This chemically vapor deposited material has wide usage in high power CO2 laser systems because of its low absorption coefficient and high resistance to thermal shock. Zinc selenide (ZnSe) is a relatively soft material that scratches easily and it is not recommended in harsh environments because its Knoop Hardness is only 120. When handling, apply uniform pressure and wear Latex finger cots or gloves to prevent contamination.
Competitive Advantage:
Zinc Selenide (ZnSe) Windows,competitive price , good quality, delivery on time, providing perfect after-sales service, to provide customers with professional customized products of parameter. We will supply you with best solution.
Why us?
1 Service time: 24 hours waiting for you.
2.Fast Response: 2 hours within our worktime, 12 hours get off work.
3.Good Service: We can supply you from design,measure to coating one stop service.
4. MOQ: No MOQ requirement, you can set your order freely.
5. After-sales service: If bad quality, we will refund .
How to Order ?
Step 1. Send the inquiry at the bottom of the product.
Step 2. We will response or quote you within 24 hours.
Step 3. Place order through email, fax directly.
