PCB Testing Equipment For FPC , Tdr Impedance Tester for Cable / Wire
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | ZK2130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | TDR Impedance Test Instrument | Measuring Accuracy: | ±1% （50Ω） |
|---|---|---|---|
| Detection Rate: | ≤1s For Every Point | ||
| High Light: | pcb board testing equipment,PCB Test Equipment |
||
Product Description
PCB Testing Equipment For FPC , Tdr Impedance Tester for Cable / Wire
Product Attributes:
|
Product name |
TDR Impedance Test Instrument |
|
Brand Name |
ASIDA |
|
Model Number |
ZK2130 |
|
Place of Origin |
China |
|
Packaging Details |
Wooden Carton |

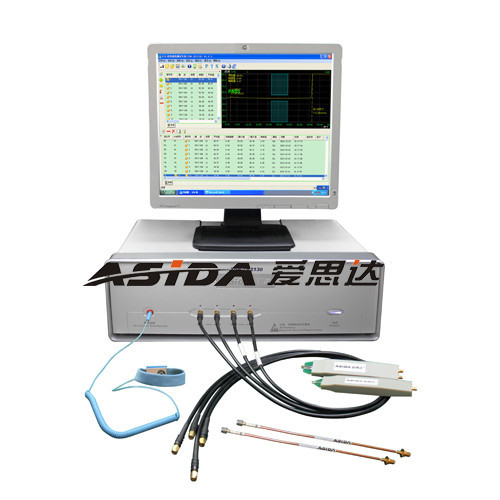

TDR Impedance Test Instrument USE:

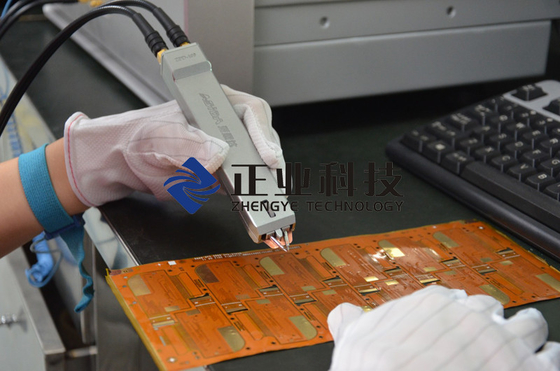

TDR impedance test instrument is designed with time domain reflectometry, and is capable of batch,
automation, rapid and accurate test of the characteristic impedance of PCB traces, test wave form
analysis and statistical data analysis. The machine automatically records the test data and issues and
prints a test report. For circuit board manufacturing, R&D, design, production and quality control unit.
High frequency impedance test circuit board provides a fast, accurate, and economic solution to a
high standard.
TDR Impedance Test Instrument Features:
1, Precision : Adopting high-precision

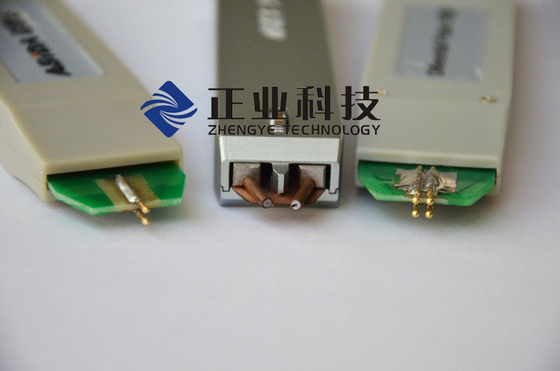

Probes, high frequency coaxial switch, and time-domain reflection,synchronous high-resolution sampling and multi-point calibration techniques.
2, Efficient:Test procedure integrated, multi-tasking one-button operation.
3, Specialties:Displays test waveform analysis, statistical data analysis, automatically record test data,
automatically generates test report and print, calibration open.
TDR Impedance Test Instrument Client:
|
Measuring accuracy |
±1% (50Ω) |
|
Detection rate |
≤1s for every point |
|
Objects |
①Controlled Impedance Measurement Range:20～150 Ω |
|
②Measuring Range:0.05～2m |
|
|
Wave Bandwidth |
3GHz |
