PVC film die cnc knife cutting machine
Product Details:
| Brand Name: | CUTCNC |
| Certification: | CE, ISO9001:2008 and other upon request. |
| Model Number: | DCE-S |
Payment & Shipping Terms:
| Packaging Details: | wooden crate |
|---|---|
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500set/year |
|
Detail Information |
Product Description

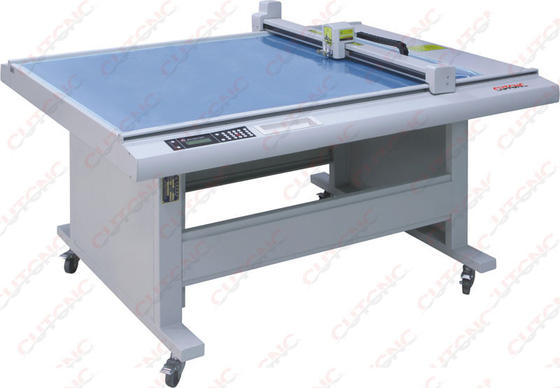

PVC film die cnc knife cutting machine can cut a variety of materials, like film, craft paper, decal, sticker, pvc, pp, flexible sheets widely applied in packaging, electronices, die cutting, pattern manufacturing, etc. Especially for orders with more specifications and less quantity, our machine is your efficient helper to reduce cost to finish production.

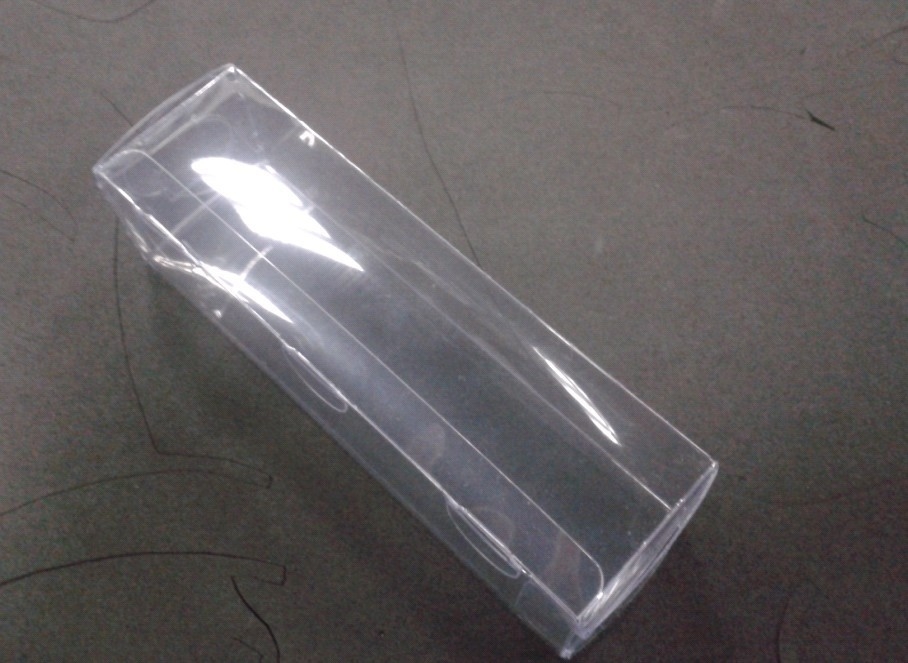

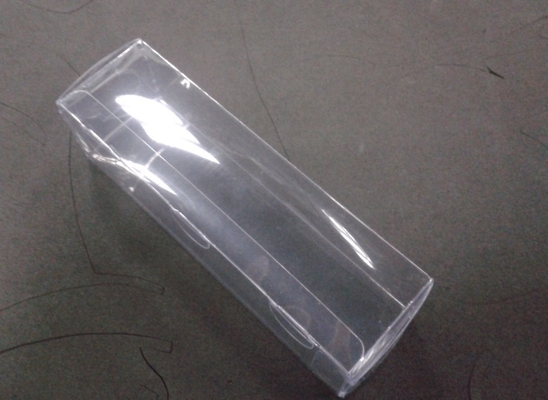

PVC samples by our PVC film die cnc knife cutting machine
Characteristics:
1. Fixing way: vacuum adsorbing
2. Support cutting, half cutting, creasing, plotting, etc.
3. Compatible with all CAD softwares,any irregular shapes can be cut according to its CAD designs.
4. Cutting depth could be adjusted to meet customer need, setting parameter to process different materials.
|
Model |
DCE-0906S |
DCE-1209S |
|
Effective cutting area(mm) |
900*600 |
1200*900 |
|
Configuration |
Pen, knife |
|
|
Way of fixing |
vacuum |
|
|
Max speed |
1000mm/s |
|
|
Cutting Precision |
<0.05mm |
|
|
Material thickness |
<1mm |
|
|
Occupy dimension |
1335*1065*1080mm |
1635*1365*1080 |
|
Note |
other sizes can be customized, the max size is 2500* 1600mm |
|
