RDA-115BDS1A RJ45 With Integrated Magnetics PCB Jack LPJ0147AENL
Product Details:
| Place of Origin: | GuangDong, China |
| Brand Name: | LINK-PP |
| Certification: | ISO9001,SGS,UL,CE,REACH |
| Model Number: | RDA-115BDS1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 PCS |
|---|---|
| Price: | 0.69 USD/PCS |
| Packaging Details: | package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton |
| Delivery Time: | Stock |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 3000000/Month |
|
Detail Information |
|||
| Part Number: | RDA-115BDS1A | Mass Production: | LPJ0147AENL |
|---|---|---|---|
| Original Munafactuer: | LINK-PP | Application: | 10/100Base-T |
| Termination: | Solder | LEDs: | None |
| High Light: | rj45 integrated magnetics,rj45 connector with magnetics |
||
Product Description

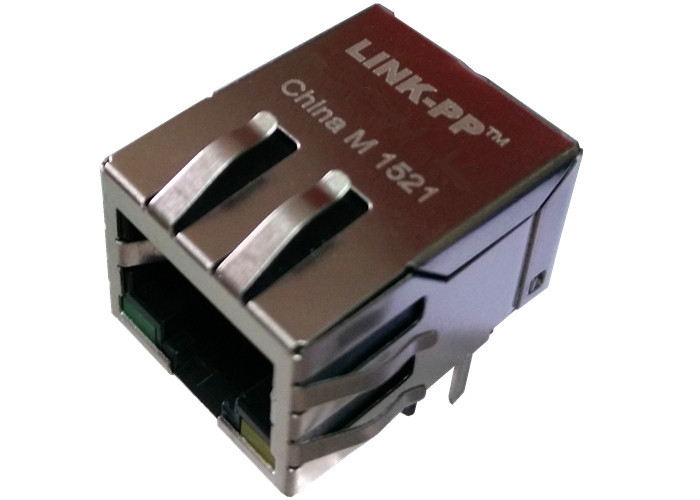

RDA-115BDS1A RJ45 With Integrated Magnetics PCB Jack LPJ0147AENL
Quick Details
1.10/100 Base-T With LEDS , With EMI-Finger
2.1x1 Tab-DOWN RJ45
3.Through hole RJ45 modular jack
4.21.3mm length RJ45 Magjack
5.RDA-115BDS1A【Designing Model】
6.LPJ0147AENL【Mass Production Model】
Features and Benefits
1. RoHS peak wave solder temperature rating 260°C
2. Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for MAX EMI suppression for cost-conscious applications
Description:
10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage:
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer:
Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale.......
