Red PCB SMT Assembly Laser Drilling Immersion Gold With Flying Probe Test
Product Details:
| Place of Origin: | China |
| Brand Name: | Hengda PCB Assembly |
| Certification: | UL,TS16949,ISO9001,RoHS. |
| Model Number: | SMT Assembly-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | As Negotiation |
| Packaging Details: | Packed in antistatic bag with unit-pack or multiple-pack box. |
| Delivery Time: | 5-30 Days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 1000000Pcs/month |
|
Detail Information |
|||
| High Light: | smt pcb assembly,smt board assembly |
||
|---|---|---|---|
Product Description

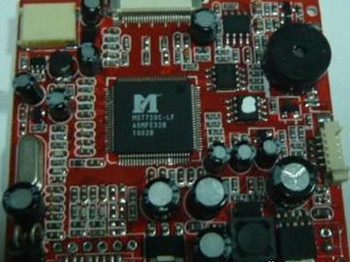

Red PCB SMT Assembly Laser Drilling Immersion Gold With Flying Probe Test
Quick Details
- Minimum Space Size:0.6mm
- Board Layer:4 Layer PCB
- Surface Finish:ENIG
- Solder Types:Lead free Solder Paste /RoHS compliant
- Pitch Components : As small as 12mil pitch
- Assembly Types:Double sided placement
- Component Types:As small as 0603 package
- Special Requirements:SMT Assembly
Description
Our production pcb assembly capabilities include machines placed SMT, THT, BGA and Micro BGAs, in addition to mixed technology PCB assembly. Keeping on the forefront of component requirements, we offer surface mount placement down to 12 mil pitch, with a component range of 0201 to 52 mm square QFPs and BGAs.
Parts & Component Sourcing
For Printed Circuit Board Assembly services, we accept components and parts in the following Two approaches.
1. Partial Turnkey,customer supply part components .
2. Full Turnkey, We purchase all the components from our Authority agent ,100% original guarantee.
Components for your PCBA project can be supplied in any one or more approaches below. We order genuine parts from your designated suppliers or our partner companies including DigiKey, Mouser, Arrow, Avnet, Future Electronics etc.
Technical Capabilities
|
Type of assembly |
THD (Thru-hole device) / Conventional SMT (Surface-mount technology) SMT & THD mixed Double-sided SMT and/or THD assembly |
|
Order quantity |
1 to 100,000 |
|
Components |
Passives, smallest size 0201 Fine pitch to 08 Mils Leadless chip carriers/ BGA, VFBGA, FPGA & DFN Connectors and terminals |
|
Component packaging |
Reels Cut tape Tube Loose parts |
|
Board dimensions |
Smallest size: 6mm x 6mm Largest size: 600mm x 400mm |
|
Board shape |
Rectangular Round, Slots, Cutouts, Complex, Irregular |
|
Board type |
Rigid Flexible Rigid-flexible |
|
Solder Type |
Leaded and Lead-Free Water soluble solder paste Manual soldering for special parts, e.g. wires and temperature sensitive parts. |
|
Design file format |
Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG BOM (Bill of Materials) Pick and Place file (XYRS) |
PCB Assembly Production Flow Chart
Testing Procedures
We perform multiple quality assurance procedures before shipping out any board. These include:
Visual inspection
X-ray Inspection
AOI (Automated Optical Inspector),
ICT (in-circuit test), and BGA Rework
Functional test (test modules need to be supplied) .
Quick turn lead times
If all the parts are available, normally the full turnkey pcb assembly job can be finished within 5 to 10 days in our factory. This means that the order can be delivered within three weeks once turnkey job start.
Service Guarantee
We make sure to serve each customer professionally, truthfully and friendly to the best of ourability. We will gladly re-work your project if your project isn’t 100% satisfactory.
Get a quick quote now
By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
