RF FPC Ultraviolet Laser Drilling Machines , Cutting Thickness 1.0mm Diameter 25μm
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Certification: | CE |
| Model Number: | JG22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard packaging |
| Payment Terms: | D/P, D/A, L/C |
| Supply Ability: | 10pcs / week |
|
Detail Information |
|||
| Product Name: | UV Laser Drilling Machine | Application: | Laser Cutting |
|---|---|---|---|
| Laser Type: | UV | Applicable Material: | FPC |
| Cutting Thickness: | 1.0mm | Cutting Area: | Laser Drilling Machine |
| High Light: | laser drilling equipment,pcb drilling machine |
||
Product Description

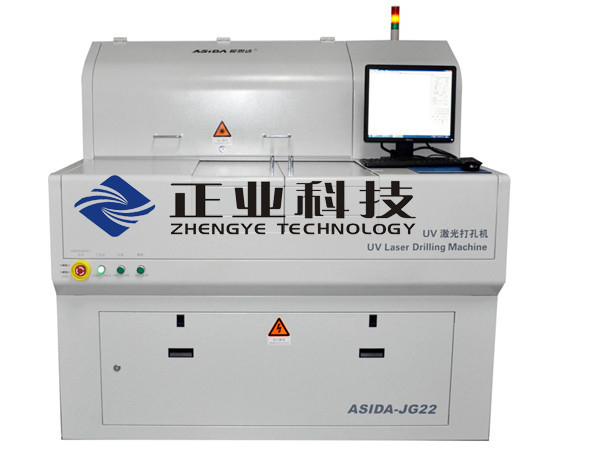

FPC UV Laser Drilling Machine / RF UV Laser Drilling Machine
Product Attributes:
|
Product name: |
UV Laser Drilling Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG22 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Drilling Machine USE:
1, Adopting the technologies of linear motor module,and high resolution grating, closed loop servo
control,optical positioning Servo control,Sizing Compensate and Optical positioning technologies.
2, High quality:With good roundness,clean hole wall,small differences between up and down hole diameter.
3, Highly intelligent,efficient:Auto focus,auto-correcting,auto-positioning,auto feeding and blanking with RTR.
4, Customize:
① Optional RTR, and support maximum 500mm wide copper processing；
② customize a variety of hardware and software functions.
UV Laser Drilling Machine Client:
|
Item |
Specification |
|
MODEL |
JG21 |
|
Laser Source |
All-solid-state UV laser cutting device, wavelength 355nm |
|
Maximum Processing Size |
650mm×560 mm(25.6″×22″) |
|
Platform Maximum Operating Speed |
60m/min |
|
Minimum processing hole diameter |
25μm |
|
Power |
AC 220V/50HZ/2.5KW;AC 380V50HZ/5.5KW |
|
Industry-specific control machine, pre-installed drilling software |
Motion control card and industry machine control mode Equipped with 17”screen, 300GB hard disk |

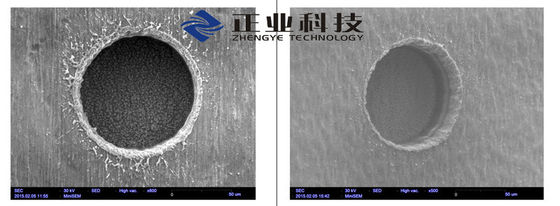

Drilling Samples :
