Rotational Speed Laboratory Testing Equipment / Machine Double Plates Muller
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | YM22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set /sets |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | negotiation |
|
Detail Information |
|||
| Diameter: | 8inch | Rotate Speed: | 0～900±30rmp |
|---|---|---|---|
| Rotate Orientation: | Anticlockwise Or Clockwise | Pressures: | 0.1MPa～1MPa |
| High Light: | lab testing equipment,Lab Testing machine |
||
Product Description

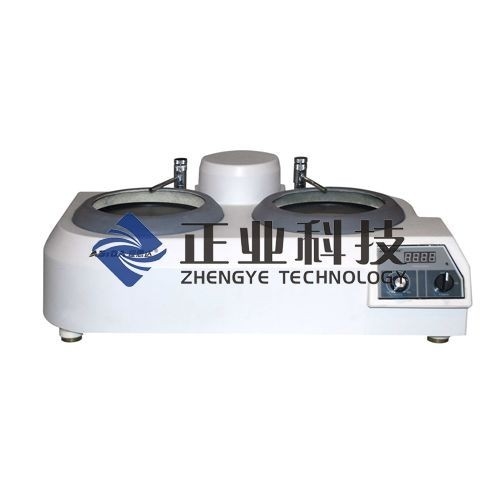

Double Plates Muller YM22
Product Attributes:
|
Product name |
Double Plates Muller YM22 |
|
Brand Name: |
ASIDA |
|
Model Number: |
YM22 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Double Plates Muller Use:
Used to polsh the micro slices of the metallographic analysis system,to a smoth/clear finish perfect for analysing.
Double Plates Muller Features:
1, Higg quality actuator and motor reduces vibration and increases the life of the product.
2, Rotational speed can be changed easily through the digital display.
3, Water and electricity are seperated making the system safe and reliable.
4, Conforming to IPC-TM-650Rev.DNO.2.1.1 1998 standard.
5, Conforming to GB/T4677-20028.3 standard.
Double Plates Muller Parameters:
|
Item |
YM22 |
|
|
Round Tube |
Diameter |
8inch |
|
Rotate Speed |
0～900±30rmp |
|
|
Rotate Orientation |
Anticlockwise or Clockwise |
|
|
Water |
Pressures |
0.1MPa～1MPa |
|
Voltage & power |
Rating Voltage |
AC220V 50Hz |
|
|
Rating power |
500W |
|
Appearance Dimension |
715×455×269(L×W×H) |
|
|
Weight |
38kg |
|
|
Millstone yaw |
≤100um |
|
