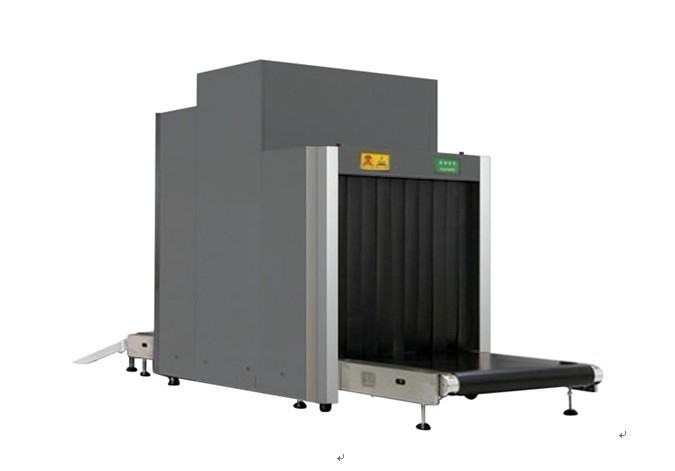

Security checking baggage x ray scanner machines with Alarm by sounds
Product Details:
| Place of Origin: | China |
| Brand Name: | ougood |
| Certification: | CE,ISO9001:2008,ROHS |
| Model Number: | SF8065 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Wooden case |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
|
Detail Information |
|||
| Product Name: | Security X-Ray System For Baggage Checking | Tunnel Size: | 800（w）×650（h）mm |
|---|---|---|---|
| Conveyor Speed: | 0.22 M/s | Conveyor Max Load: | 150 Kg |
| Single Inspection Dosage: | < 1.5µgy | Wire Resolution: | 0.1mm Metal Line |
| Steel Penetration: | 30mm Armor Plate | Film Safety: | For Iso 1600 |
| High Light: | airport x ray scanner,luggage x ray scanner |
||
Product Description
Security checking baggage x ray scanner machines with Alarm by sounds
Feature :
- Alarm by sounds & light::alarm by sounds and light when conform to condition.
- Network interface:could be connect local area network and support multi-terminal check baggage at same times
- Safety ray:transmit ray under automatic control, avoids the miss
- Turn off by a key control:turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
- Eagle-eye:could be expediently observing enlargement area.
- Estimate malfunction by self:automatic estimate malfunction and prompt message, helpful for the maintenance.
Technical data :
Tunnel size: 800(w)×650(h)mm
Conveyor speed: 0.22 m/s
Conveyor max load: 150 kg
Single inspection dosage < 1.5µgy
Wire resolution: 0.1mm metal line
Steel penetration: 30mm armor plate
Film safety: for iso 1600
Maximum leakage radiation <0.3µgy/h
X-ray generator :
Orientation: vertically upward
Tube current: 0.4~1.2ma(adjustable)
Anode voltage: 100~160 kv(adjustable)
Angle: 80°
Generator cooling/working periods sealed oil bath with forced air/100％
Image performance system :
X-ray sensor: l type photo-diode array detector, 12bit
Monitor: high resolution 17inch color lcd display
Color quality : 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement : image detail is more distinct
High penetrate strength display : increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
Low penetrate strength display : increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly
Magnifier : function of partial enlargement
Brightening/dimming : increase brightness of image/decrease brichtness of image
Image recurrence : display previous twenty images and process any one of them
Image restoration : restore image to initial status at the time of stopping conveyor
Image storing : real time store any image and process it in operation status
Multi-energy function :
Multi-energy color: display organic material for orange, display inorganic material for blue,
and display mixture for green
High energy/low enercy: switch to display two energy type, high energy stands for metal etc.,
low energe stands for nonmetallic
Auxiliay function for drugs & explosives: help to detect such dangerous material as drugs & explosives etc.
Audible & visible alarm: give sound and visible signal when conforming to condition
Operating environment :
Storage temperature: -20ºc to 60ºc
Operating temperature: 0ºc to 45ºc
Relative humidity: 20 to 95% non-condensing
System power: 220 vac (±10%) 50±3hz
Power wastage:1.2 kw (max)
Noise: <65db
Packing : 1pcs/carton
Carton size : 250cm*140cm*190cm
Weight/carton : 800kgs
