Semi-Automatic Hydro Pneumatic Heel Nailing Machine\
Product Details:
| Certification: | CE |
| Model Number: | YL-3001S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 25 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 100 sets per month |
|
Detail Information |
Product Description

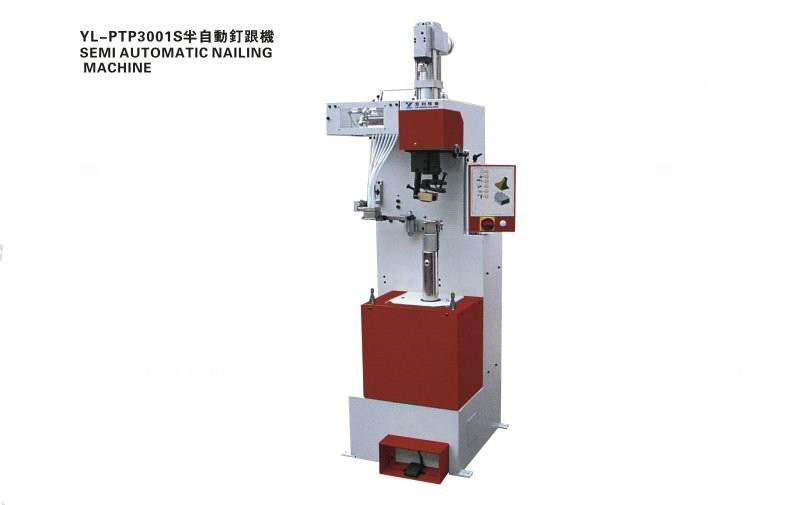

YL-3001S Semi-Automatic Heel Nailing Machine
Quick Detail:
- Product name: Semi-Automatic Heel Nailing Machine
- Automatic Grade: Semi-automatic
- Function: High heel nailing
- Machine type: Semi-auto Heel Nailing Machine
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: Red & White
Semi-Automatic Hydro Pneumatic Heel Nailing Machine , 1200prs / 8hrs
Description:
The Semi-Automatic Heel Nailing Machine is in very good technical stand, It has the advanced hydro-pneumatic cylinder with adjustment of the second pressing to fit any kind height heel. Location accurately and protect the heel, the nails are driven at angle to eliminate the risk of bursting through heel. It is installed the safe protection device on the nail holder arm, fast change the nail mold function.
Technical Features:
1. 7 nails plus 8 screws, also can design to be 5 nails plus 6 screws;
2. Movable nailing column for boots;
3. 5 small cylinders plus 1 big cylinder for nailing on very hard materials;
4. Low noise, suitable for small orders;
5. Automatic checking, clear up error quickly;
6. Choose working direction according to different needs;
7. Manual nailing putting, without nailing feeder, nailing in order, no nailing program.
Specifications:
|
Model No.: |
YL-3001S |
|
Product name: |
Semi-automatic Heel Nailing Machine |
|
Brand name: |
YiLi |
|
Certification: |
CE |
|
Nails height: |
6~28mm |
|
Driven type: |
Hydraulic |
|
Pressure type: |
Air cylinder |
|
Automatic Grade: |
Semi-automatic |
|
Voltage: |
380V |
|
Power: |
0.3KW |
|
Color: |
Red & white |
|
Measurement: |
860 × 1200 × 2100 (mm) |
|
Weight: |
480 kg |
|
Capability: |
1200prs/8hrs |
|
Condition: |
New |
|
Warranty Period: |
One year |
Application:
Suitable for clenching heel pieces of different kinds of men’s and women’s boots or shoes.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
Tag: Semi-Automatic Heel Nailing Machine, Automatic Heel Nailing Machine, Italian Heel Nailing Machine, Heel Nailing Machine, Full-automatic Heel Nailing Machine.
