Semi-automatic Leather Splitting Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 20 days after received the formal purchasing order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
Product Description

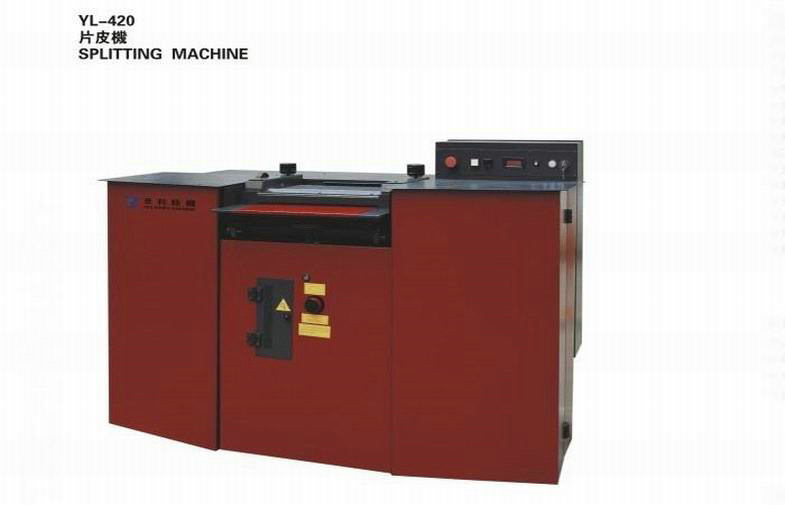

YL-420 Splitting Machine
Quick Detail:
- Product name: Splitting machine, Leather splitting machine
- Machine type: Cutting/splitting
- Working materials: Leather/Outsoles
- Machine material: Stainless steel
- Knife type: export
- Max width of split: 8mm
- Control: PLC
- Automatic grade: Semi-automatic
Semi-automatic Leather Splitting Machine 2.7KW 380V For Shoe Outsoles
Description:
YL-420 Leather Splitting Machine is suitable for the hard and soft leather materials of leather products with a width of 420mm and a thickness below 8mm, and the leather materials are split into pieces with required thickness. The cutting thickness, It can be adjusted at will so as to improve the product quality and to enhance the market competition force.
Technical Features:
1. No need to adjust cutters direction;
2. Steel grinding wheel or diamond;
3. Single cutter controller;
4. Flexible and fast setting for the edge of knife;
5. Automatic adjustment of clipper parts;
6. Independently dust of cutter and dust collector;
7. Wheel is moving in accurate beeline axletree orbit;
8. Fast adjustment for pressure;
9. Optics ocular check the symmetry of knife edge;
10. Digital show splitting thickness;
11. Safety device according to CE Standard;
12. No need to back-out gimbal also can change materials given roller;
13. Easy to get mending and for spare parts;
14. Lubricate spared parts forever.
Additional Devices:
a. Materials given roller(8/0.6M);
b. Rubber materials given roller;
c. Steel grinding wheel/normal grinding wheel;
d. Thickness checking gauge.
Specifications:
|
Model No.: |
YL-420 |
|
Product name: |
Splitting machine |
|
Brand name: |
YiLi |
|
Technology: |
Italy |
|
Automatic grade: |
Semi-automatic |
|
Voltage: |
Three/single phase,380V/220V |
|
Power: |
2.7KW |
|
Color: |
Red/White/Blue/Yellow |
|
Measurement: |
1600 × 1300 × 1100 (mm) |
|
N.W: |
635 kg |
|
G.W: |
675 kg |
|
Working width: |
420mm |
|
Feeding speed: |
1-20m/min |
|
Specification of band knife: |
3570 x 50 x 0.8mm |
|
Max sharpening thickness: |
8mm |
|
Min sharpening thickness: |
0.6/0.2mm |
|
Cutter size: |
0.7/50/3500 |
|
Condition: |
New |
|
Guarantee: |
One Year |
Application:
This machine applies to split different leather goods, pressure of splitting can be adjusted automatically.
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Original Spare Parts
4. Made in China
5. Fast Delivery Time
6. Best before, during & After-sales service
7. Reasonable Price
