Semi-automatic Toe Cap Shoe Pounding Machine
Product Details:
| Certification: | CE |
| Model Number: | YL-268 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wooden Case/Steel Pallet with PE Poly-bag) |
| Delivery Time: | Within 18 days after received the formal purchased order |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 200 sets per month |
|
Detail Information |
Product Description

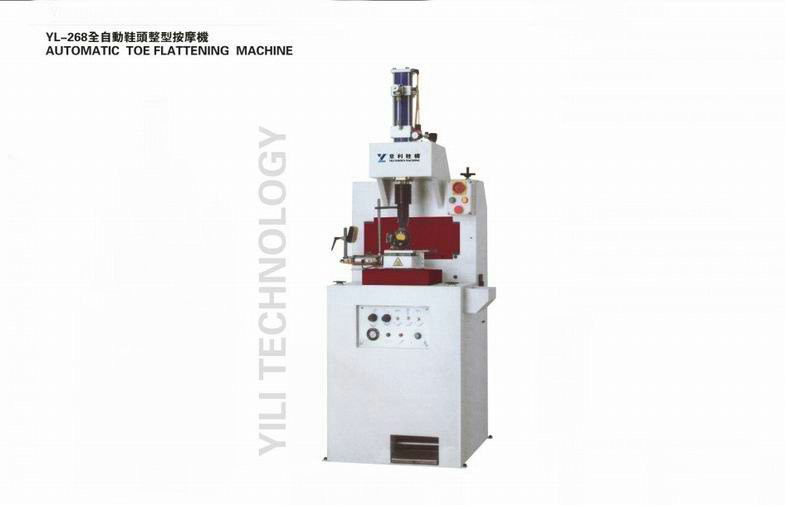

YL-268 Automatic Toe Cap Pounding Machine
Quick Detail:
- Name: Automatic Toe Cap Pounding Machine for shoes
- Function: Toe cap pounding
- N.W: 400 kgs
- G.W: 420 kgs
- Power: 0. 7KW
- Voltage: 380V/220V
- Air pressure: 0.6Mpa
- Capability: 2500prs/8hrs
Semi-automatic Toe Cap Shoe Pounding Machine 0. 7KW , 380V / 220V
Description:
YL-268 Automatic Toe Cap pounding machine is used for pounding shoes toe cap after lasting, with the hot mould heats up evenly. Using conical rolling wheel to automatically find heel seat, upper bottom on hot mould to vibrate and press it to achieve effect of pounding to remove wrinkle and of distinct outline. It is suitable for any men and lady shoes loading will be more convenient by oscillating of supporting rod, secondary pressurizing raises productivity through fast ascending.
Technical Features:
1. This automatic toe flattening machine fits for toe flatten after lasting for any shoe style;
2. By means of the ironing effect of heating-plate and the beating effect of vibrating-roller, the surface of heel-seat will be flat and have a better edge;
3. Rotation speed of last and travel speed of vibrating-roller are adjustable as required;
4. The beating frequency of vibrating-roller can be adjusted.
Specifications:
|
Model No.: |
YL-268 |
|
Brand Name: |
YiLi |
|
Voltage: |
380V/ 220V |
|
Power: |
0. 7KW |
|
Air pressure: |
0.6Mpa |
|
Dimensions: |
700 × 930 × 1600 (mm) |
|
Packing size: |
950*1080*2100mm |
|
N.W: |
400 kgs |
|
G.W: |
420 kgs |
|
Function: |
Pounding |
|
Automatic Grade: |
Semi-automatic |
|
Color: |
Red & white |
|
Capability: |
2500prs/8hrs |
|
Condition: |
New |
|
Guarantee: |
1 Year |
Application:
It applies to the molding massage of toe part for various men and women's shoes
Competitive Advantage:
1. Italian Technology
2. Italian Quality
3. Made in China
4. Fast Delivery Time
5. Best before, during & After-sales service
6. Competitive Price
