Single Module PCB Testing Equipment , LED Thermal Resistance Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | RX1110A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set / Sets |
|---|---|
| Price: | negotation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | negotation |
| Payment Terms: | T/T |
| Supply Ability: | negotation |
|
Detail Information |
|||
| Repeat Accuracy: | ＜5% | TEG Specifications: | 5*5mm |
|---|---|---|---|
| Thermal Resistance Range: | Rp≥5K/W , Rt≥5K/W | Substrate Specifications: | 50x50mm |
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description

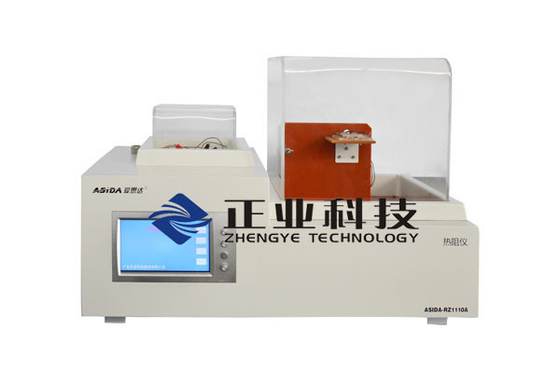

Thermal Resistance Tester / PCB Thermal Resistance Tester
Product Attributes:
|
Product name: |
Thermal Resistance Tester |
|
Brand Name: |
ASIDA |
|
Model Number: |
RZ1110A |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Thermal Resistance Tester RZ1110A Use:
The tester is suitable for equivalent thermal resistance and thermal conductivity detection of high-power PCB in horizontal and vertical directions.
It is particularly suitable for thermal conductivity assessment of PCB which high brightness LED using in
horizontal and vertical directions .
Thermal Resistance Tester RZ1110A Features:
Precision :
① Based on the principle of steady state.；
② High-precision temperature sensor；
③ Precise control of TEG chip power；
④ System built-in standard operating procedure (to eliminate the interference of human action)
2, Efficient:
① Taking standard detection algorithm；
② Integrated Design；
③ One-button operation.
3, Specialties:
① The tester is devised based on the China,South Korea and Japan combined standards listed in JPCA-TMC-LED01S and JPCA-TMC-LED02T;
② Independent development TEG chip.
Double Plates Muller Parameters:
|
Repeat accuracy |
＜5% |
|
Test efficiency |
30 min(Single module) |
|
Object |
①Thermal Resistance Range:Rp≥5K/W,Rt≥5K/W |
|
|

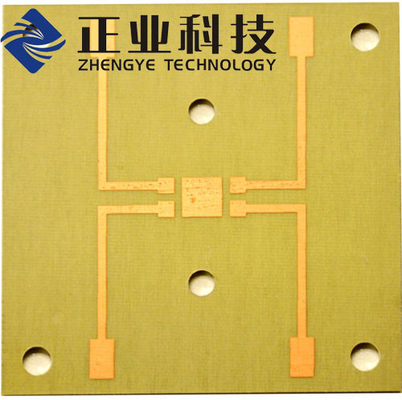

② Substrate specifications:50x50mm |
|
TEG specifications |
5x5mm |
