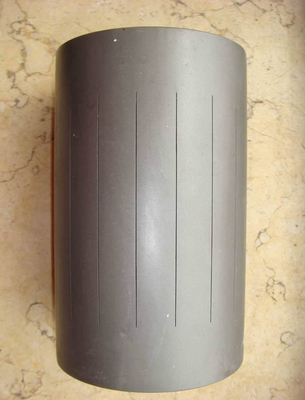

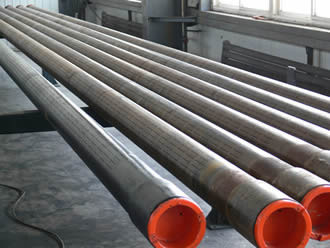

Slotted liner CNC laser cutting machine; Co2 laser API pipe slot cutting machine
Product Details:
| Place of Origin: | China |
| Brand Name: | SUNWAY |
| Certification: | CE;CCC; CSA |
| Model Number: | SPLCO-X018×30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 70days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5sets/month |
|
Detail Information |
Product Description
SPLCO-X018×30 CNC laser cutting machines for tubes which is strictly manufactured according to the flying optics with cantilever structure technology from Italy Prima Industries S.P.A. is specialized in cutting the pipes of oil-extracting of the oil industry. Compared to the traditional machines for cutting tubes (cutting head fixed, feeding tubes, straight-line cutting head, low cutting efficiency and bad precision), our machine is higher efficiency and precision and can achieve that the tube doesn’t move in its axis direction and the cutting head move straightly. The machine can cut the entire different tubes which diameter is within Ø210mm. The overall layout of our machine tool is compact ;reasonable and cover small area and could protect for totally closed.
www.sunwaycnc.com / www.pipeslotting.com
No | Item | Parameter | Unit |
1 | Cutting size | Ø180×3000 | mm |
2 | X Axis Stroke | 3000 | mm |
3 | Y Axis Stroke | 180 | mm |
4 | Z Axis Stroke | 100 | mm |
5 | X and Y Axis Positioning Accuracy | ±0.03 | mm/m |
6 | X and Y Axis Repeatability Positioning Accuracy | ±0.02 | mm |
7 | Maximum Positioning Speed of X axis | 100 | m/min |
8 | W Axis Rotation Accuracy | ±15 | second |
9 | W Axis Rotation Repeatability Accuracy | ±3 | second |
10 | Maximum diameter of W axis | 180 | mm |
11 | Laser Powr | 3000 | W |
