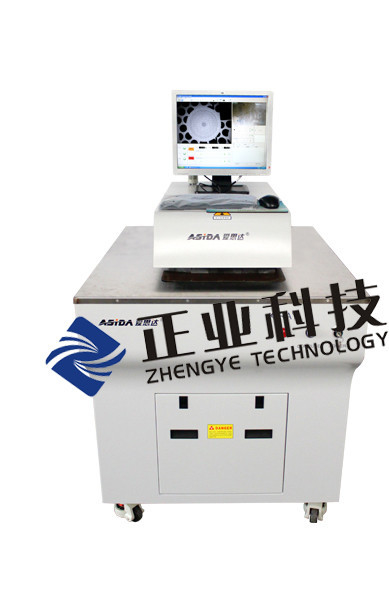

Small X-ray Inspection Machine Measure Positioning Holes On A PCB

Product Description

X-ray Inspection Machine for PCB (  measure positioning holes on a PCB )

X-ray Inspection Machine Product Attributes:

X-ray Inspection Machine Usage :
Detect and measure positioning holes on the PCB to check deviation between layers. A variety of measurements can be programmed such as the distance from the centre of one circle to another, point to point distance and circle area.

X-ray Inspection Machine Characteristics :

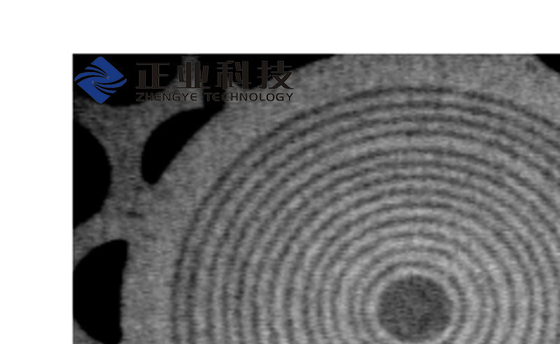

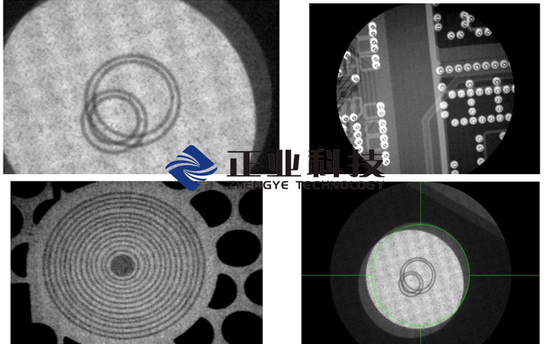

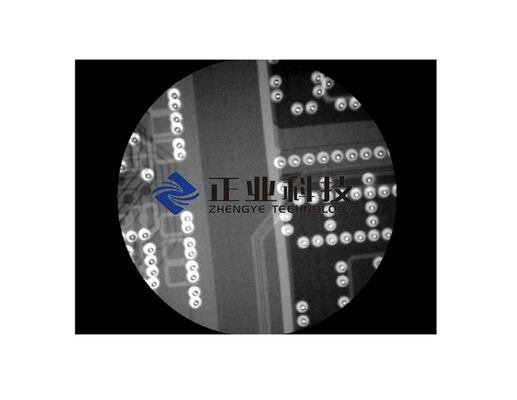

 Utilises X-ray projection and imaging to observe and measure positioning holes on a PCB.
 CAN network computer control system leading to simple operation.
 Equipped with CCD navigation functions to facilitate mobile testing and quickly search for the test objectives.
 Sealed micro focus X-ray tube and image processing software to reduce image distortion.

X-ray Inspection Machine  Standard-compliant :
JB/T5054, JB/T5055-2001 mechanical design Standard
EN13861-2002 ergonomic requirements;
GB19517-2004 electrical safety requirements;
GB18871-2002 Ionizing Radiation Protection and safety
of radiation sources basic standards;
IPC-A-600G board Acceptable quality specifications requirements.
