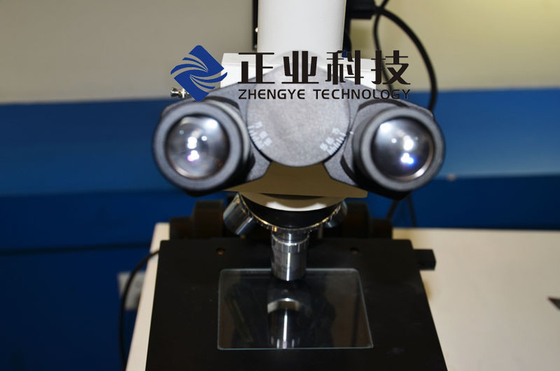

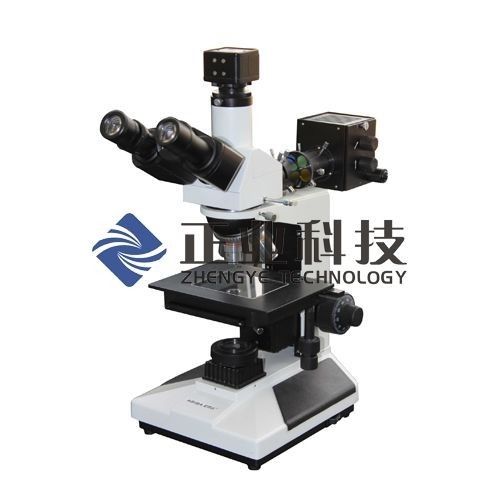

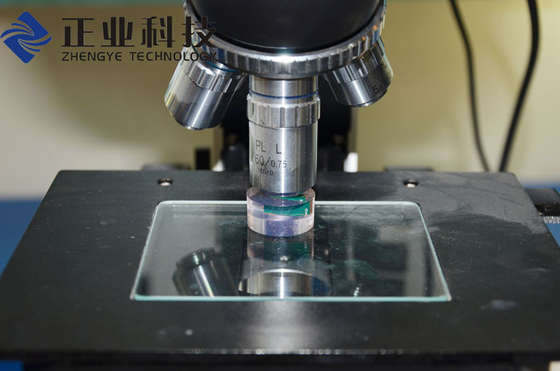

Upright Laboratory Testing Equipment Horizontal Metallographic Microscope for IC Components
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Model Number: | JX22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | Metallographic Microscope | Main Body: | Upright |
|---|---|---|---|
| Eye Lens(wide View): | 10× | ||
| High Light: | laboratory testing machine,Lab Testing machine |
||
Product Description
Metallographic Microscope/Inverted Horizontal Metallographic Microscope for IC Components and Microsections
Product Attributes:
|
Product name |
Metallographic Microscope |
|
Brand Name |
ASIDA |
|
Model Number |
JX22 |
|
Place of Origin |
China |
|
Packaging Details |
Wooden Carton |
Metallographic Microscope USAGE
ASIDA metallographic microscope is used in measurement and analysis of tiny-size objects like IC components and microsections.
Metallographic Microscope CHRACTERISTIC
1.The software is initiatively developed, so we can customize its function.
2.Optimize optical path to ensure best imaging effects.
3.The software is easy to use. It’s easy to achieve accurate measurement and analysis about point-to-point,line-to-line, arc, radius, diameter, angle and other related dimensions.
4.It’s easy to take photos, measure on them and store them.
Metallographic Microscope JX22/JX23 Parameters:
|
ITEM |
JX22 |
|
Main body |
Upright |
|
Optional magnification |
50×～600× |
|
Electronic magnification |
90×～1150× |
|
Eye lens(wide view) |
10× |
|
Field lens(achromatic) |
5×,10×, 40×,60× |
|
Lighting system |
Drop lighting 6V30W, adjustable halogen brightness with effect from polarizer |
|
CCD model |
WD-300C |
|
CCD camera |
megapixel |
|
Accuracy |
±0.0006mm |
