UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through - holes CE

UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through - holes CE

Product Details:

Place of Origin: China
Brand Name: Asida
Certification: CE
Model Number: JG22

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set / Sets
Price: Negotiation
Packaging Details: Wooden Carton
Delivery Time: Negotiation
Payment Terms: T/T
Supply Ability: Negotiation
Get Best Price Contact Now

Detail Information

Product Name: UV Laser Drilling Machine System Processing Accuracy: ±25um
Drilling Speed: >250 Holes For Every Second Roundness: ≥95%
High Light:

pcb drilling machine

,

laser drilling system

Product Description

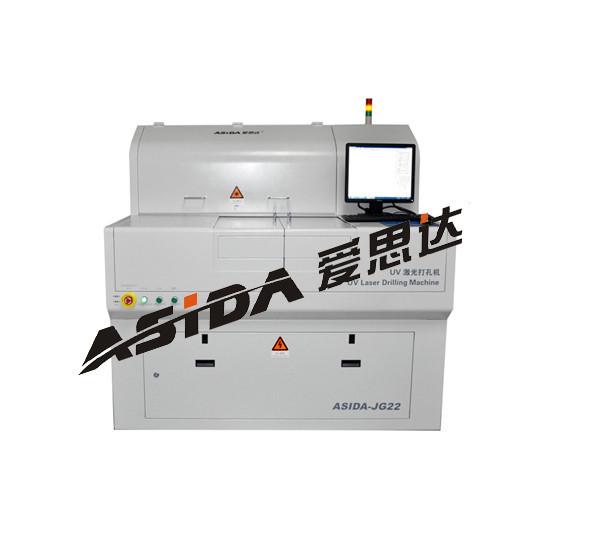

UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through-holes

Product Attributes:

Product name:

UV Laser Drilling Machine

Brand Name:

ASIDA

Model Number:

JG22

Place of Origin:

China

Packaging Details:

Wooden Carton





UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through-holes USAGE



Drilling blind holes, vias in HDI board, blind cut and blind slot in flexible board with low carbonisation.

High stability and high reliability .



UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through-holes CHARACTERISTICS

1. Safe and reliable: fully enclosed design, automatic control of worktable door to ensure safe operation.

2. Automation: Auto focus, auto-correction, auto-positioning, auto-homing, automatic spot compensation, and intelligent design.

3. Energy measuring: Automatically measure energy on the samples.

4. High drilling / cutting precision: Using ultra-high-precision scanning galvanometer, fully guaranteed drilling, cutting accuracy and quality.

5. Multi-panels cutting: With function to cutting array panels.

6. Optical optimization: High peak power and high pulse energy, fine focal spot, ensure cutting and drilling with high speed and high precision.

7. Convenient operation: Drilling and cutting with independent module, easy conversion.

8. Optimize design: Optimization of laser processing path function, reduce processing time and improve efficiency.

UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through-holes Client :



System processing accuracy

±25um(ZHENGYE conditions)

Drilling speed

>250 holes for every second

Roundness

≥95%

Differences between up and down hole diameter

≤10μm

Objects

①Maximum processing size:560X650mm

②Minimum processing hole diameter:25μm

Dimensions

1610*1660*1550mm

Weight

2900Kg

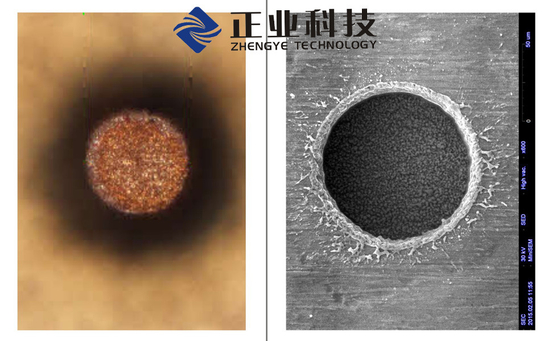

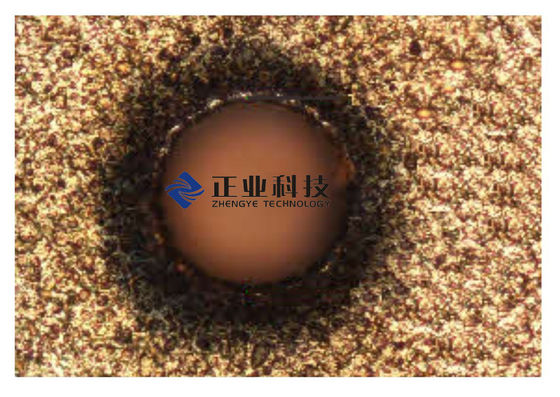

Drilling Samples :

UV Laser Drilling & Cutting Machine for FPC / Coverlay and Through - holes CE 0
