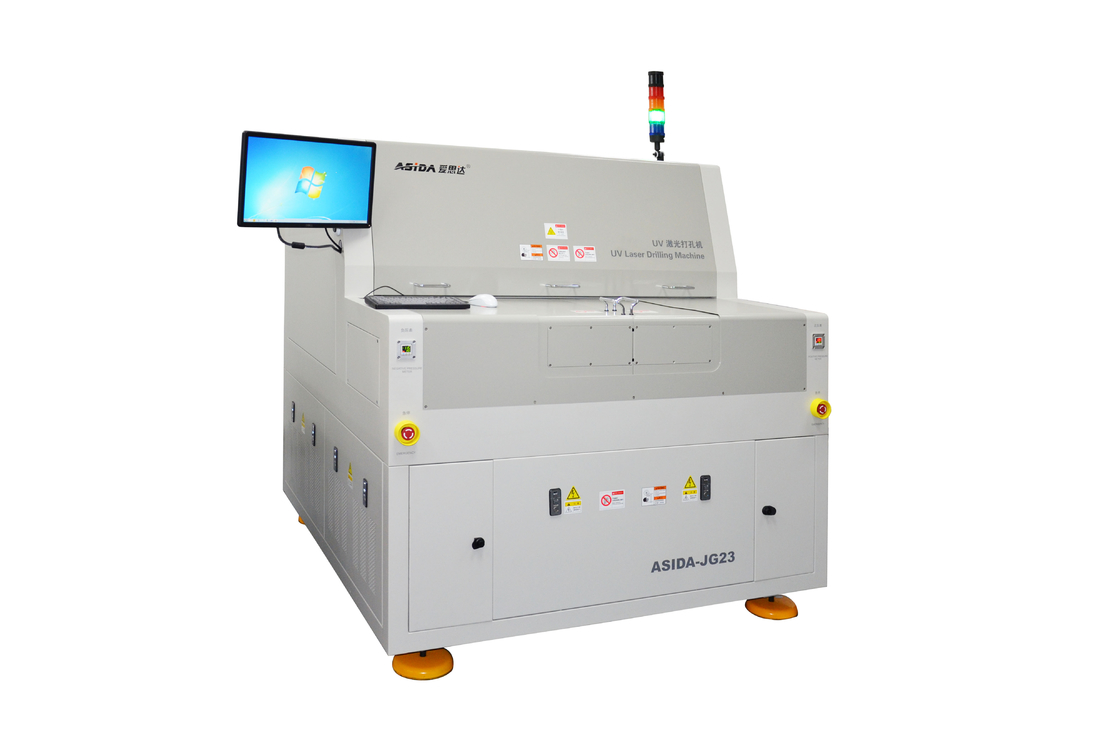

UV Laser Drilling Machine JG23
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Certification: | CE,ISO |
| Model Number: | JG23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 1 month |
| Payment Terms: | TT |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| High Light: | Drilling machine,pcb drilling mahine,laser drilling machine |
||
|---|---|---|---|
Product Description
UV Laser Drilling Machine JG23
Product Attributes:
Product name | UV Laser Drilling Machine |
Brand Name: | ASIDA |
Model Number: | JG23 |
Place of Origin: | China |
Packaging Details: | Wooden Carton |
UV Laser DrillingMachine USE：
The machine is used in drilling through-holes,blind hoes of FPC and cutting the CVL/FPC/RF.
Laser Drilling Machine Features:
1.High speed: Adopting the most advanced IFOV dynamic processing technology,to realize the galvanometer and platform motion processing at the same time which greatly improve the equipment processing capacity;
2.High quality:Adopting the advanced laser,high-performance galvanometer, faster pulse frequency,higher peak light rate, more fine cutting path planning;
3.Smart: 3 CCD visual system with high and low times lens, more intelligent
4.Customized: customizable 250 mm or 500 mm wide RTR automatic loading system and various kinds of software functions
5.Safety: professional security module control system, equipment and personnel security more secure
6.stable: a new design concept, each procedure, strives for perfection,
UV Laser Drilling Machine Specifications:
Project | Specifications |
Model | ASIDA-JG23 |
System processing accuracy | ±25μm（ZHENGYE conditions） |
Drilling speed | 200 holes per one second |
Objects | ①Maximum processing size:560X650mm |
②Minimum processing hole diameter：50μm | |
③Drilling through-holes,blind hoes | |
Machine size | 1600mm×1733mm×1940mm |
Weight | 2300Kg |
